C&I High Voltage ESS Cabinet
Configured-to-order integrated energy storage cabinet for commercial and industrial projects
A configurable integrated cabinet platform covering approximately 64.3kWh to 261kWh, with air-cooled or liquid-cooled options. The final quotation defines the exact supplied equipment and services.
Configured project pricingRequest a quotation
PRODUCT DETAILS
Supply scope and specifications
Key features
- Capacity configurations from approximately 64.3kWh to 261kWh

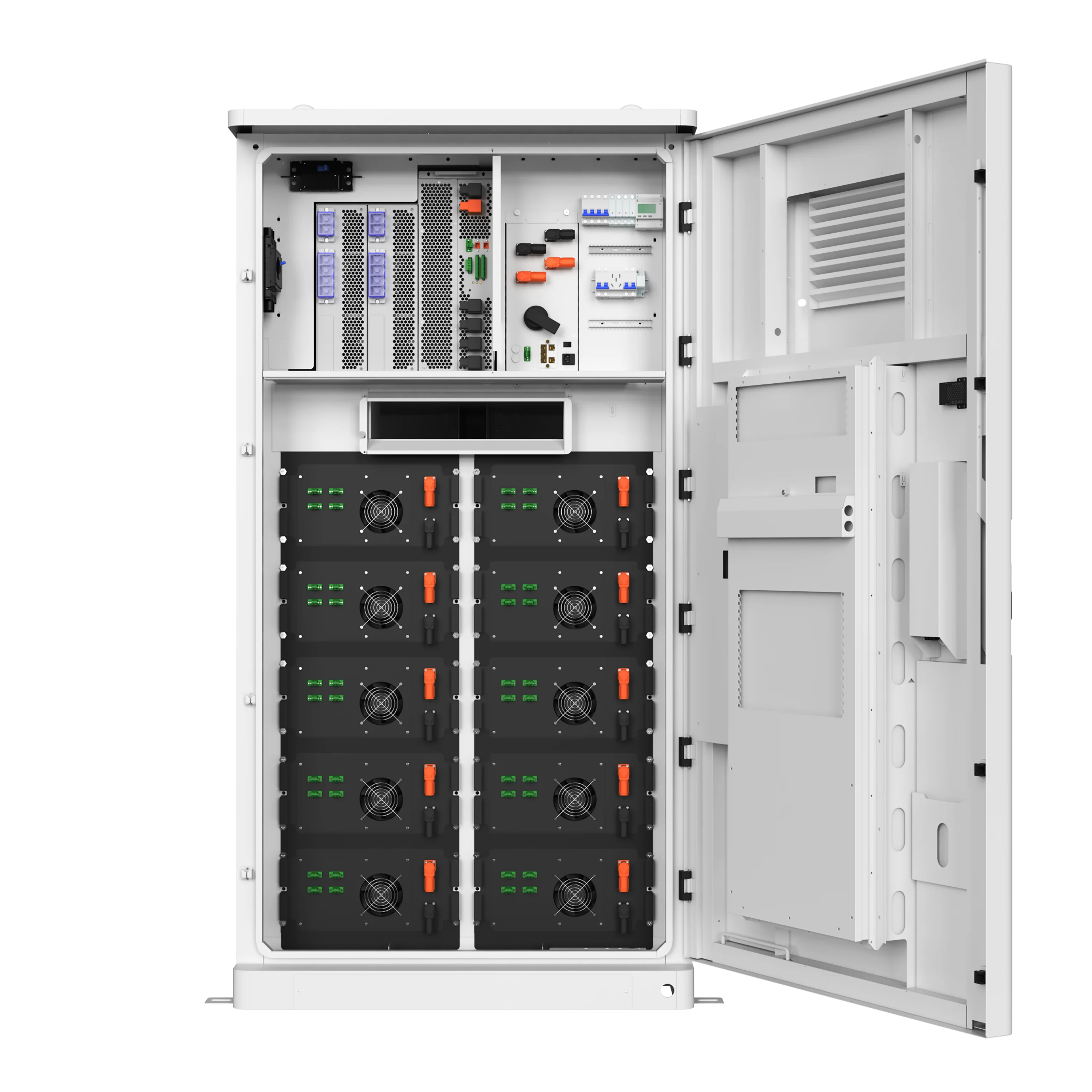

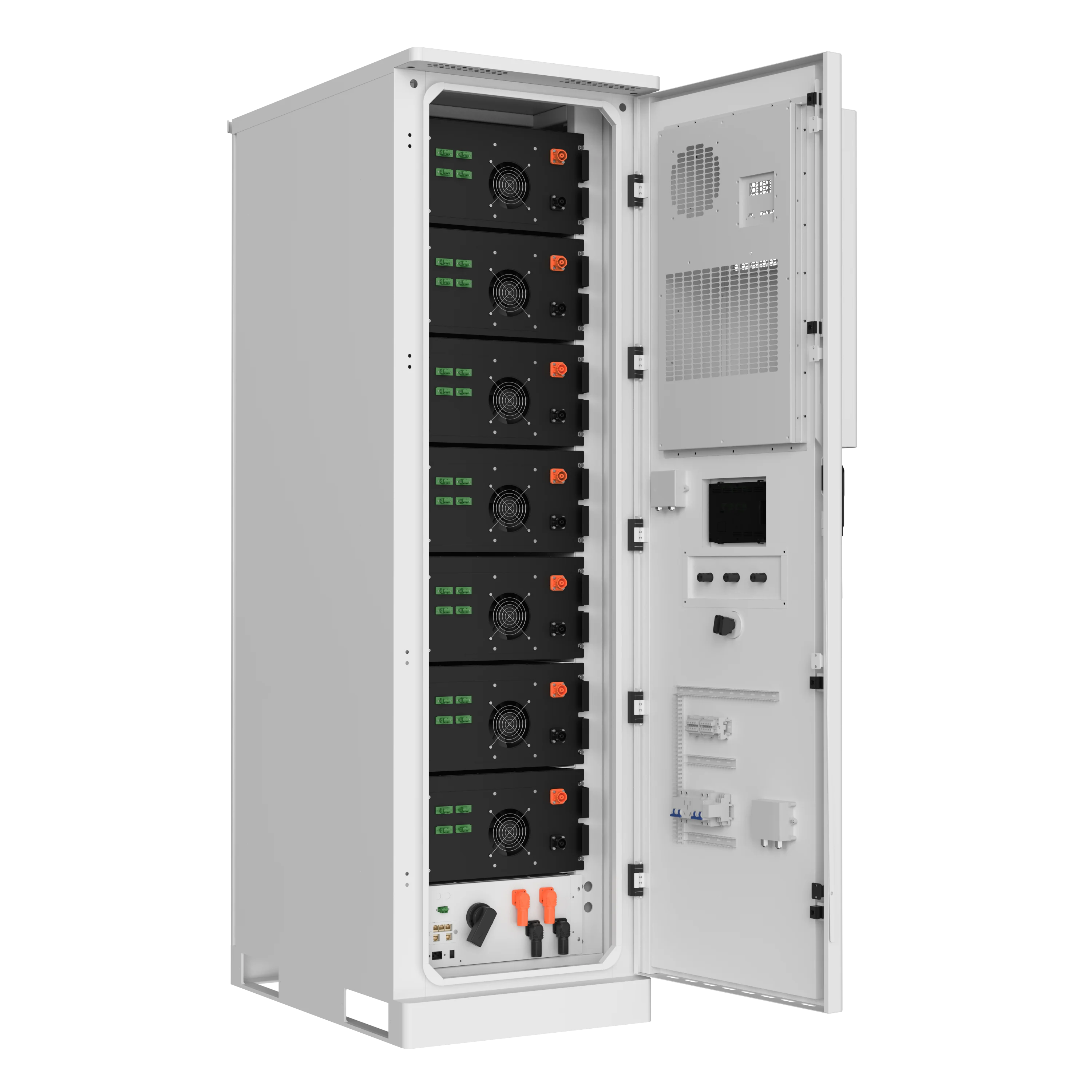

- Modular cabinet architecture with quick-connect battery modules

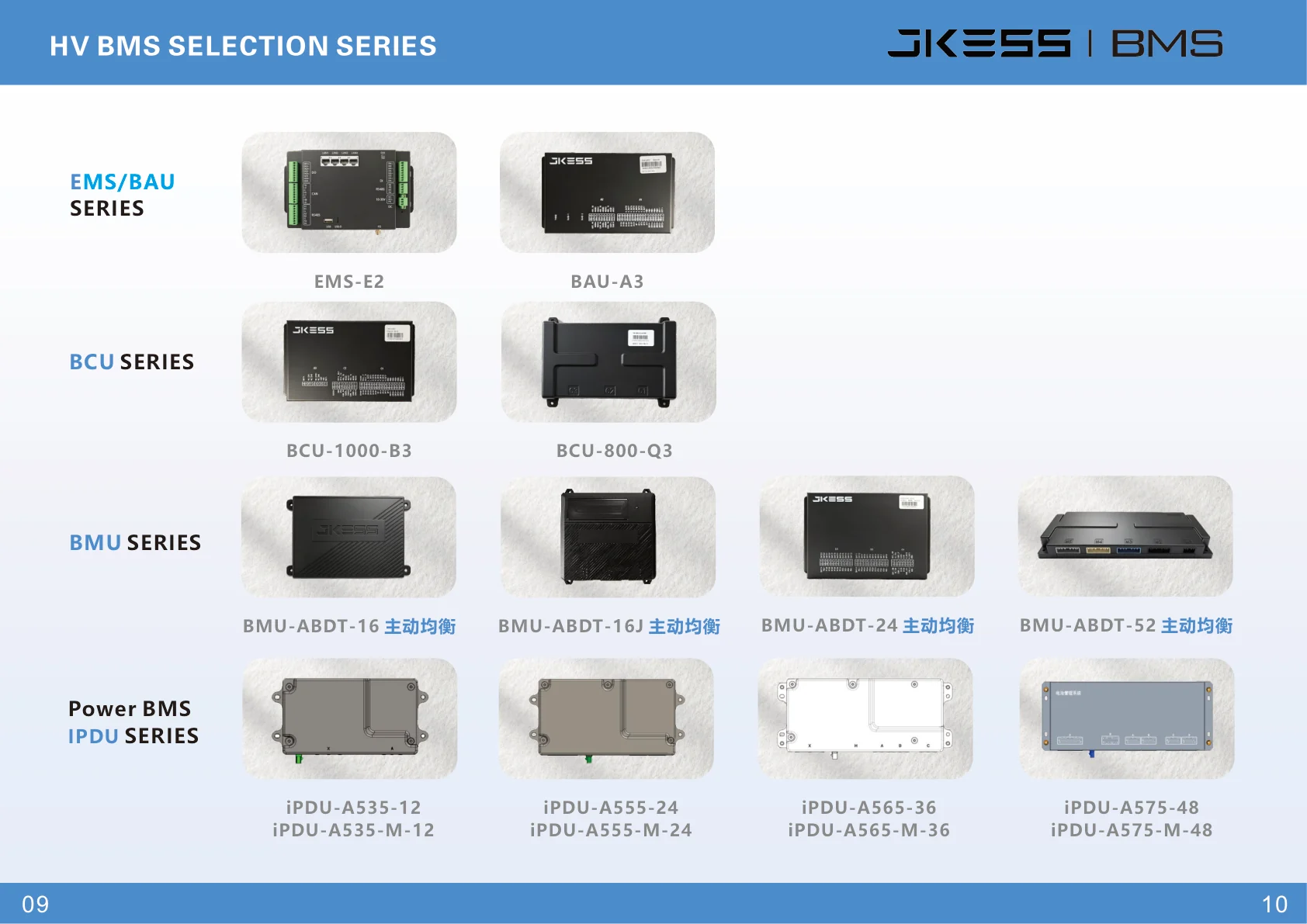

- Integrated BMS with active balancing in applicable configurations
- Air-cooled and liquid-cooled options
- Outdoor IP55 cabinet design with up to C4 anti-corrosion protection
- Pack-level and cabinet-level fire protection options
- WiFi, 4G, LAN, CAN, RS485, and Ethernet monitoring options
Included
- The ESS cabinet and factory-integrated components listed in the project quotation
- Selected battery modules, BMS, PCS, EMS, cooling, fire protection, and monitoring where specified
- Factory assembly and testing for the quoted configuration
- Technical documentation and remote support listed in the quotation
Not included
- Civil works, foundation, crane work, and site preparation unless quoted
- Site AC/DC cabling, switchgear, transformer, and grid interconnection unless quoted
- Onsite installation, commissioning, travel, and training unless quoted
- Any equipment, certification, freight, duty, tax, or service not included in the final quotation
Product TypeConfigured-to-order C&I energy storage cabinet
Final Supply ScopeDefined by the signed project quotation
Capacity Range64.3kWh / 80.4kWh / 100.3kWh / 112.5kWh / 120.57kWh / 215.04kWh / 241kWh / 261kWh
Cooling OptionsIntelligent air cooling / liquid cooling
Battery ChemistryLFP 3.2V 280Ah / 314Ah cells, configuration dependent
AC Power Range30kW ~ 125kW
PV Input Range45.5kW ~ 200kW maximum, configuration dependent
DC Voltage Range165.5V ~ 949V, configuration dependent
Round-trip Efficiency≥88%, configuration dependent
Protection RatingIP55 outdoor cabinet, up to C4 anti-corrosion level
CommunicationWiFi / 4G / LAN / CAN / RS485 / Ethernet, configuration dependent
Operating Temperature-20°C ~ 55°C
DETAILED PRODUCT INFORMATION

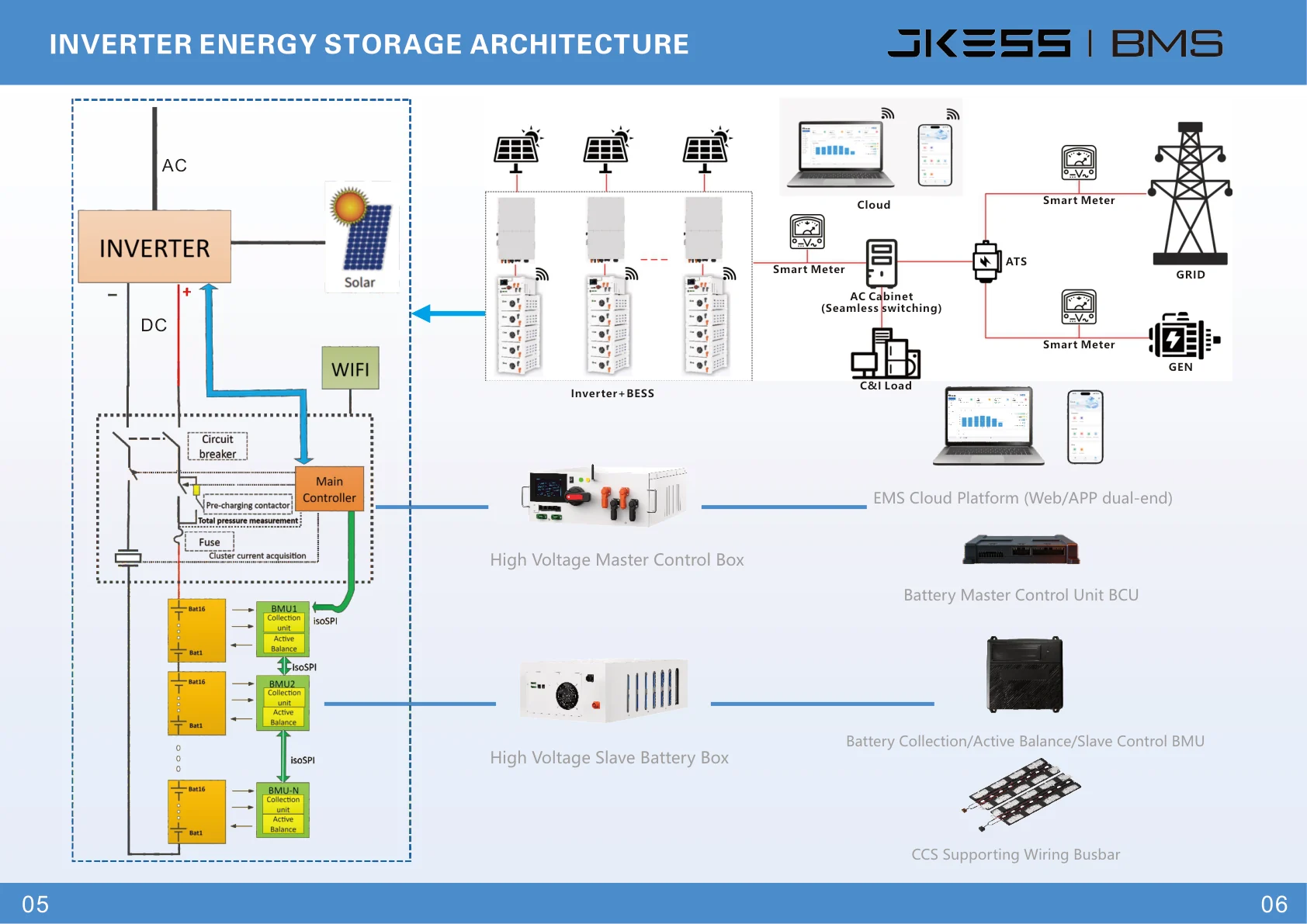

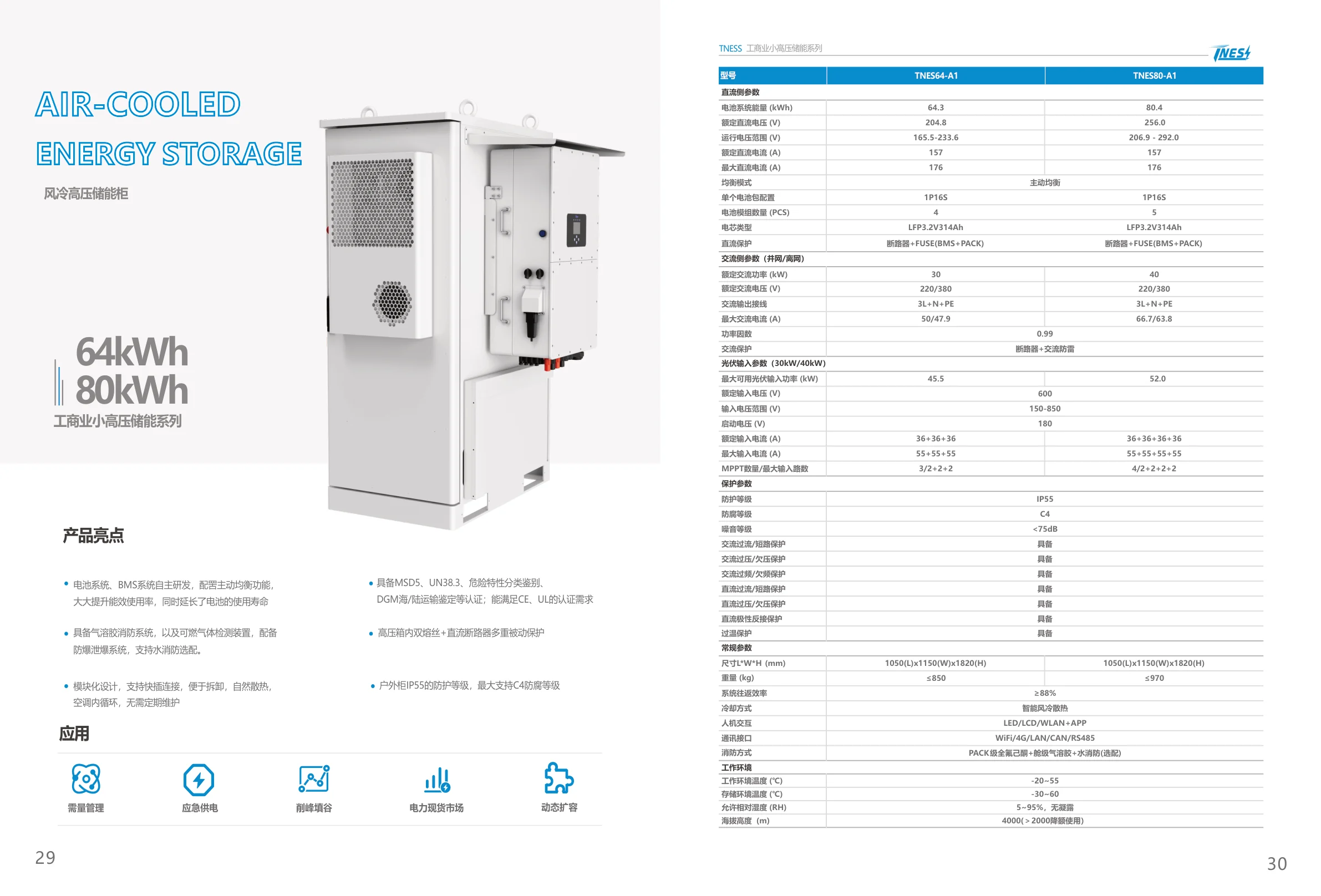

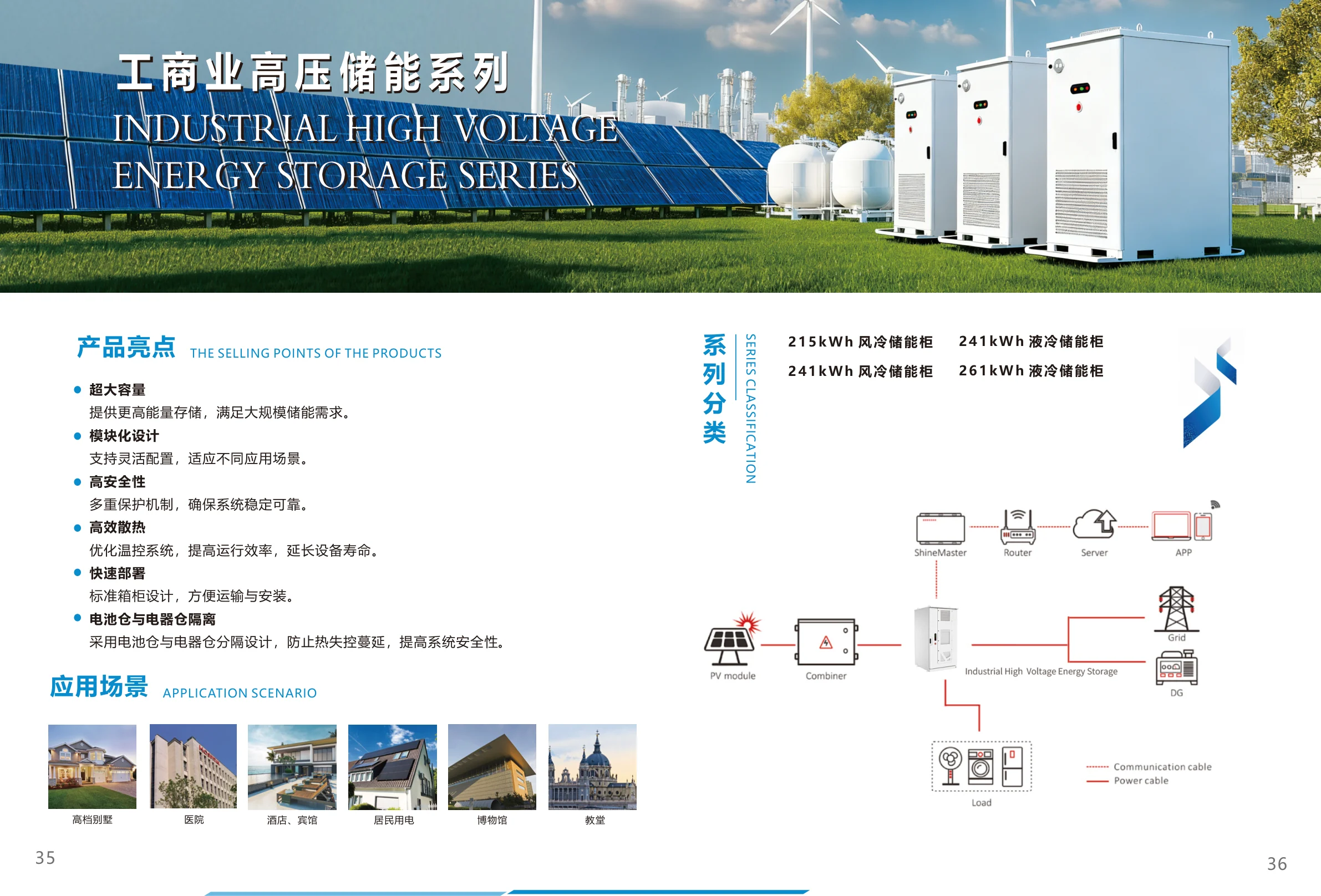

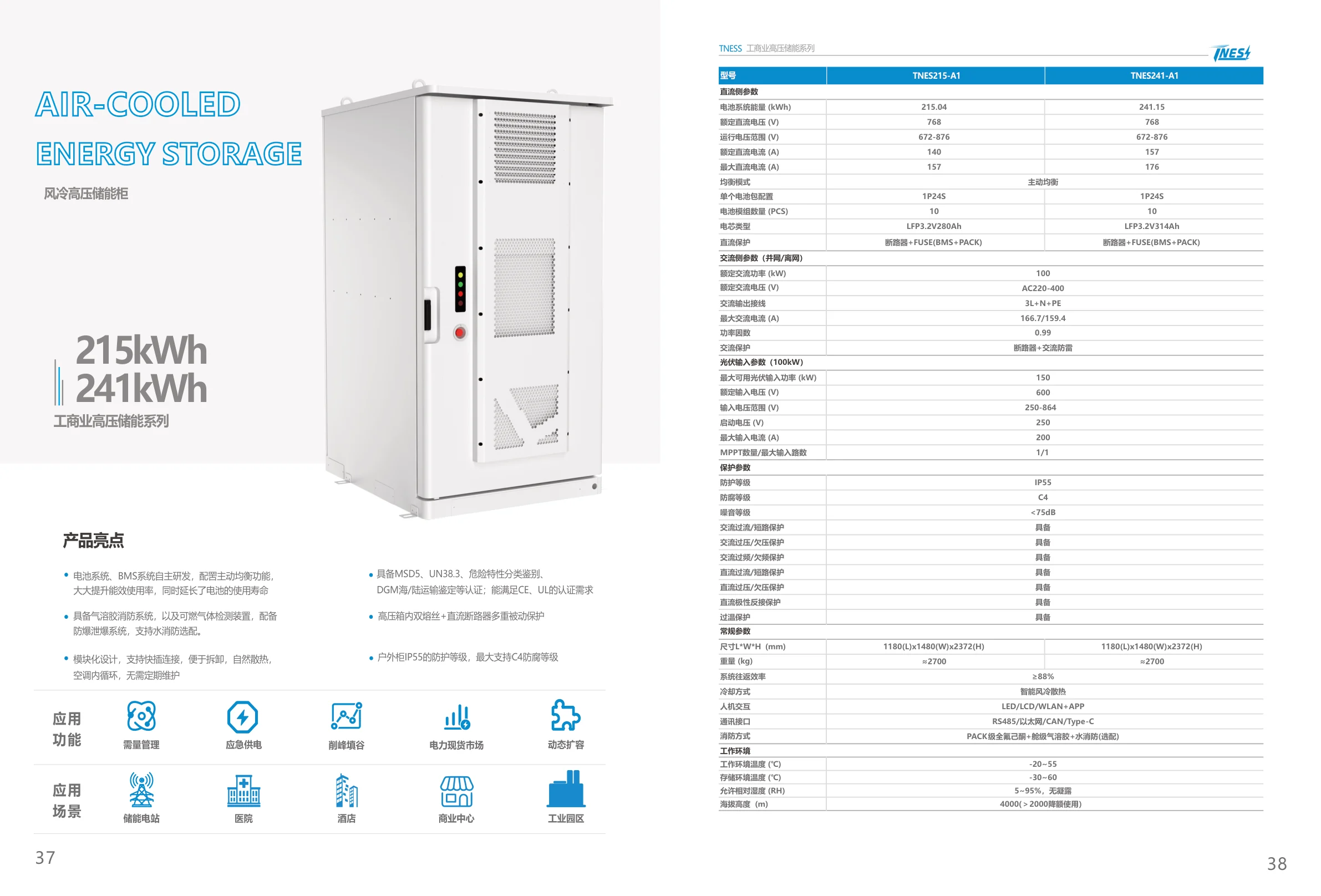

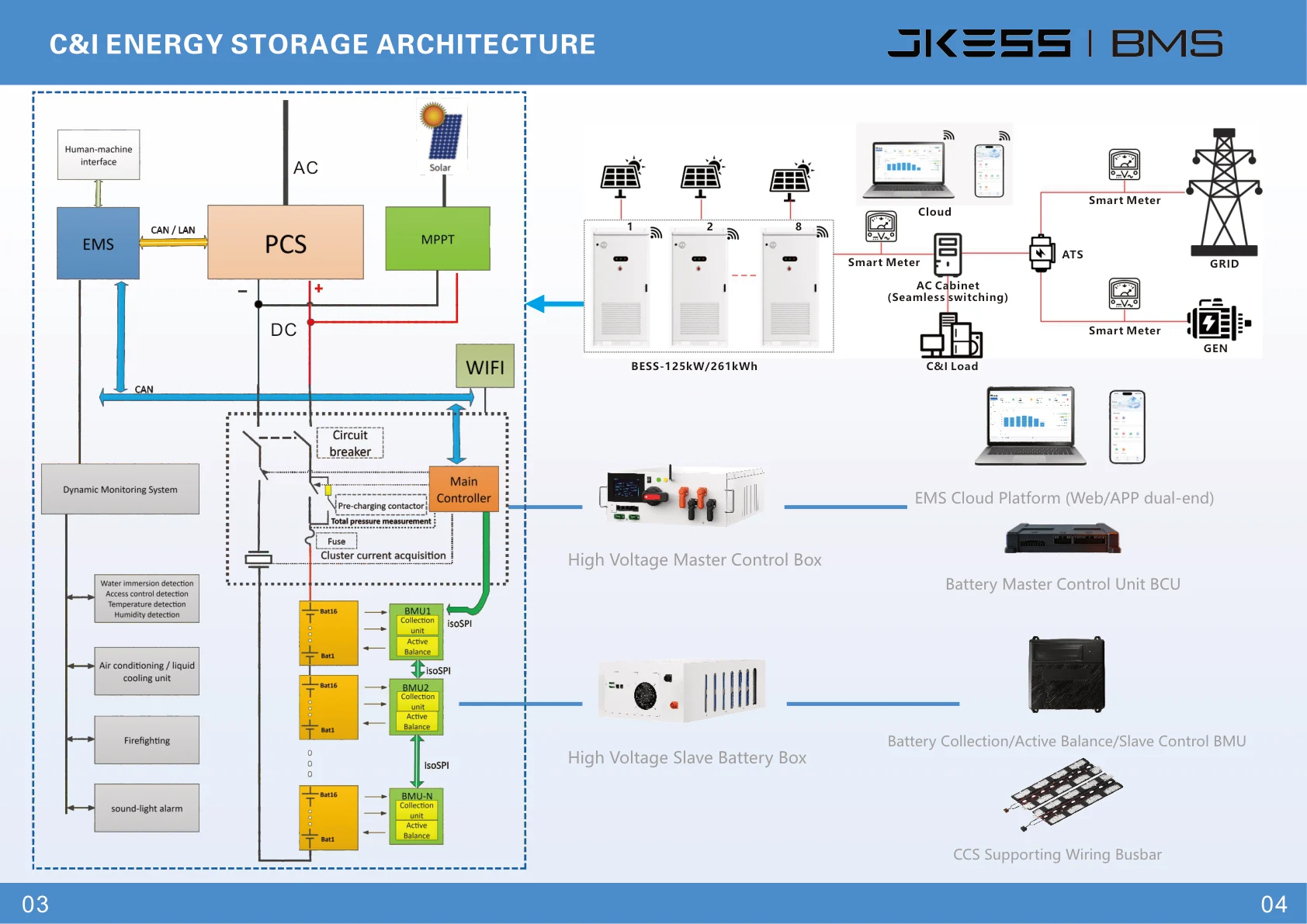

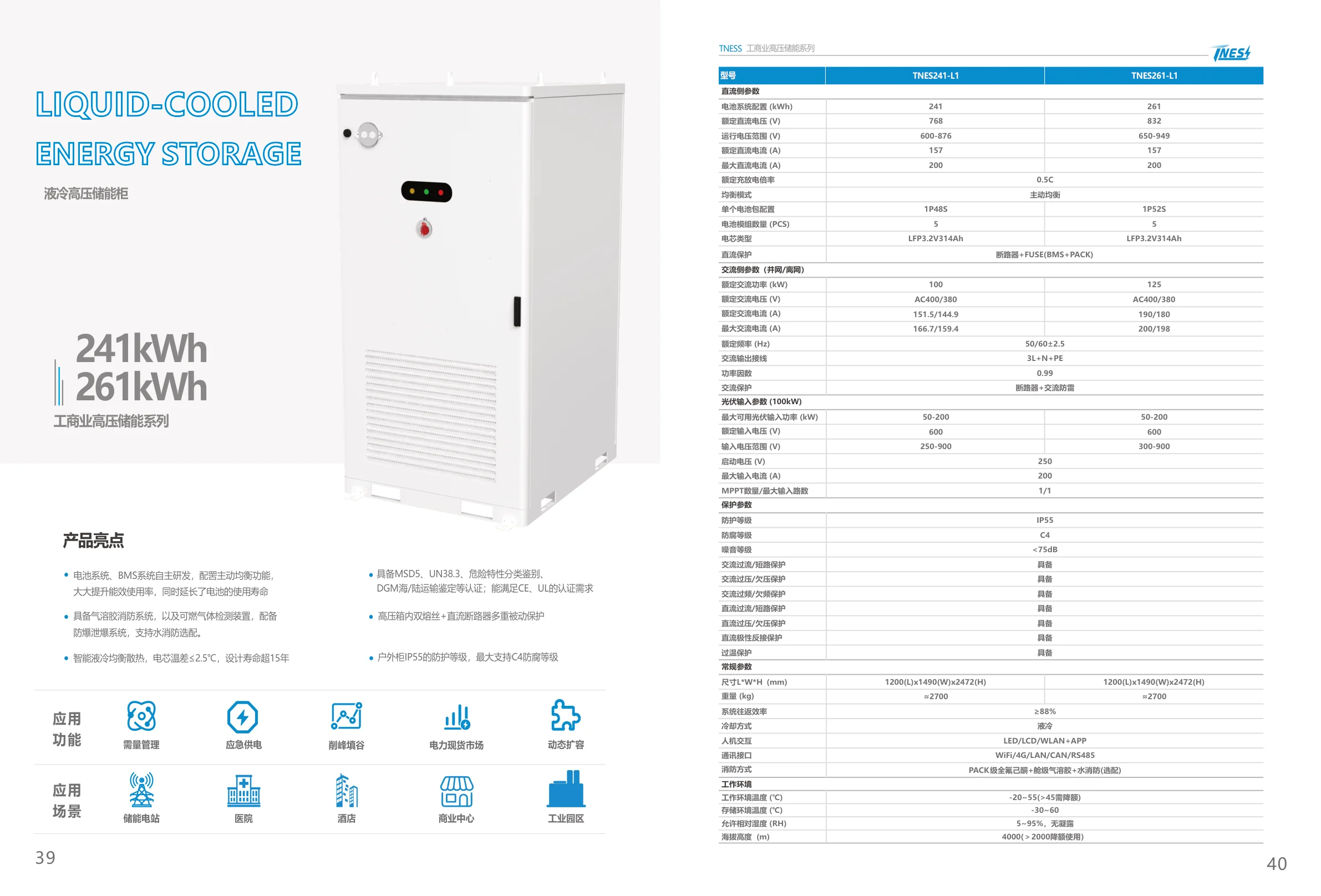

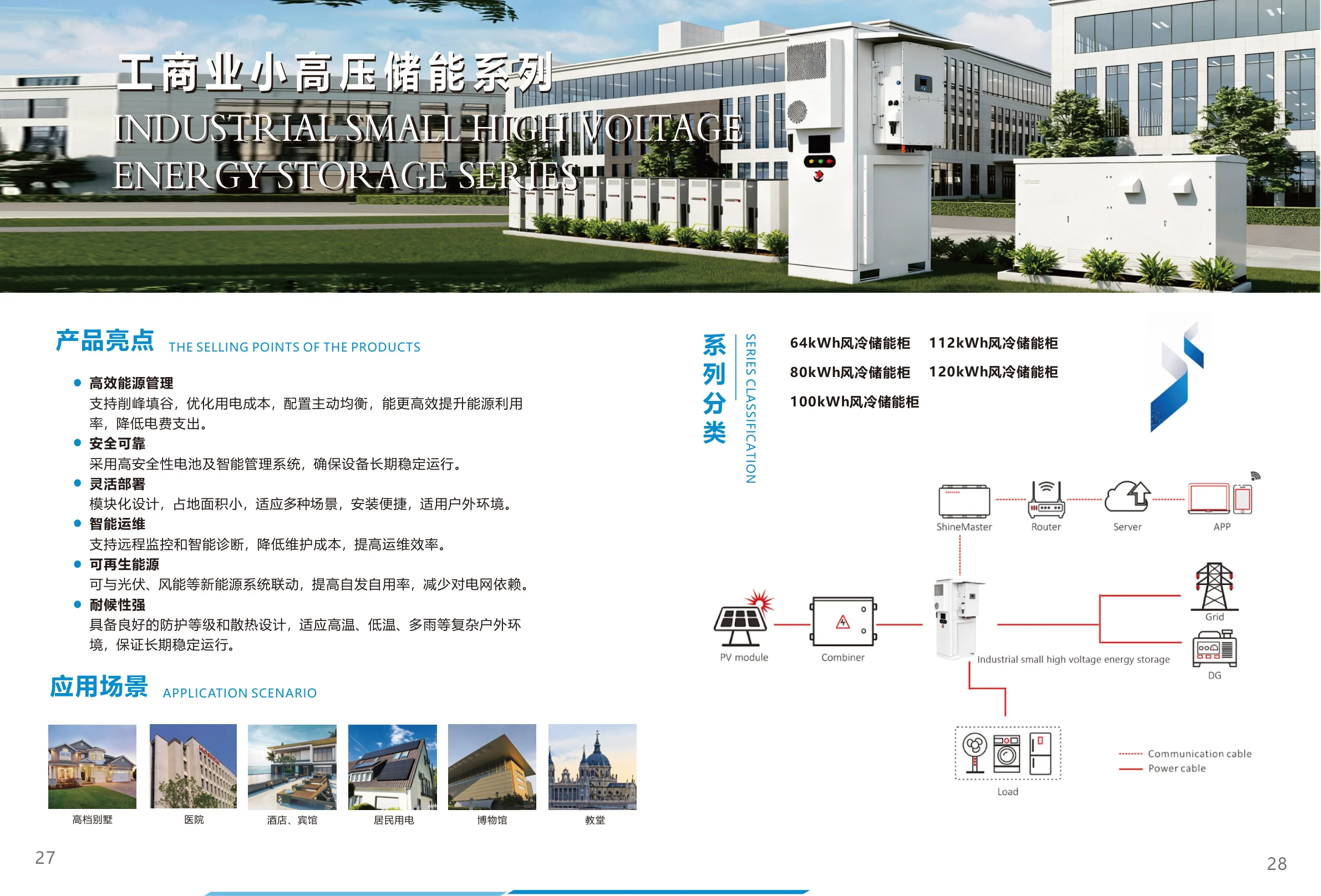

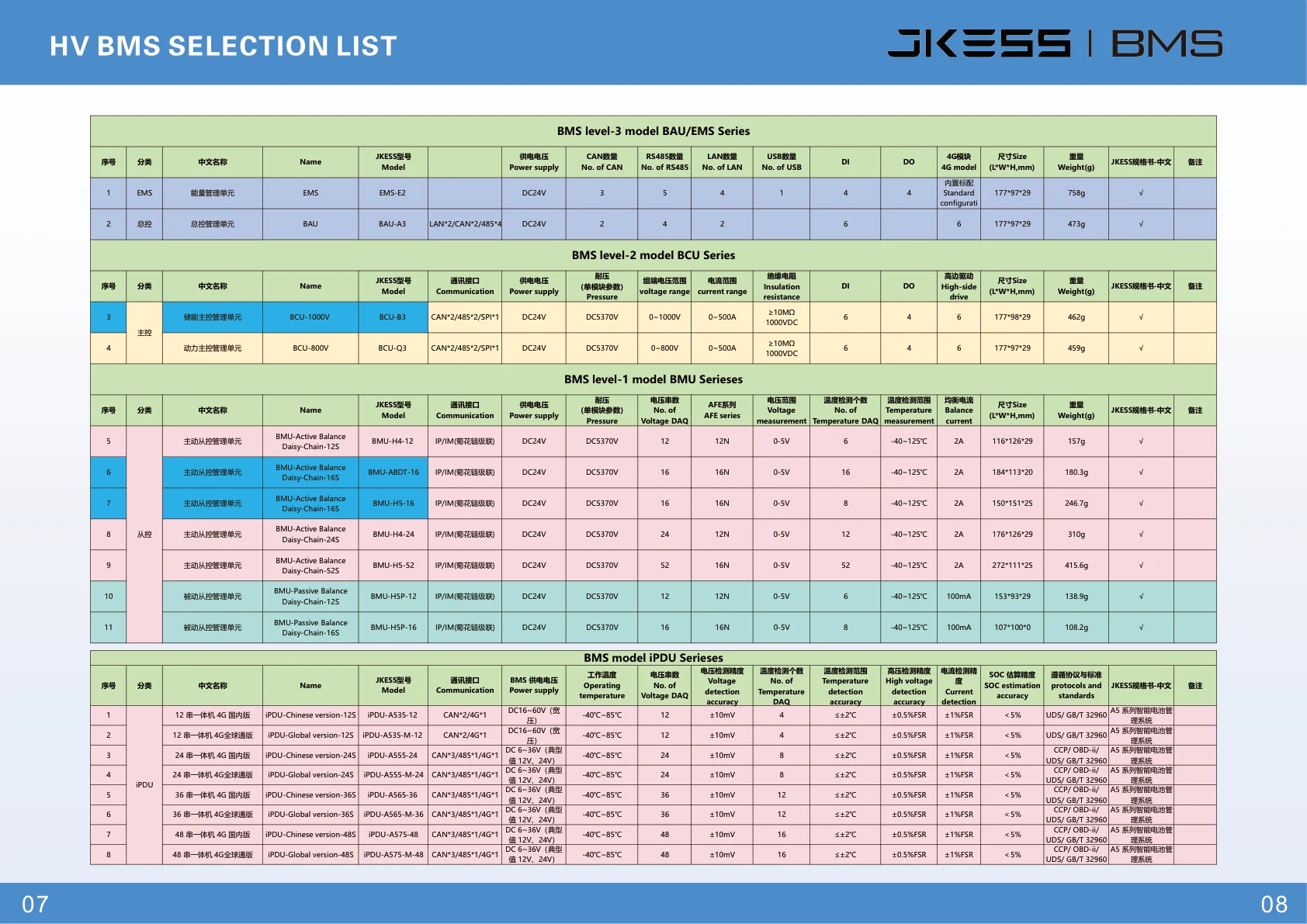

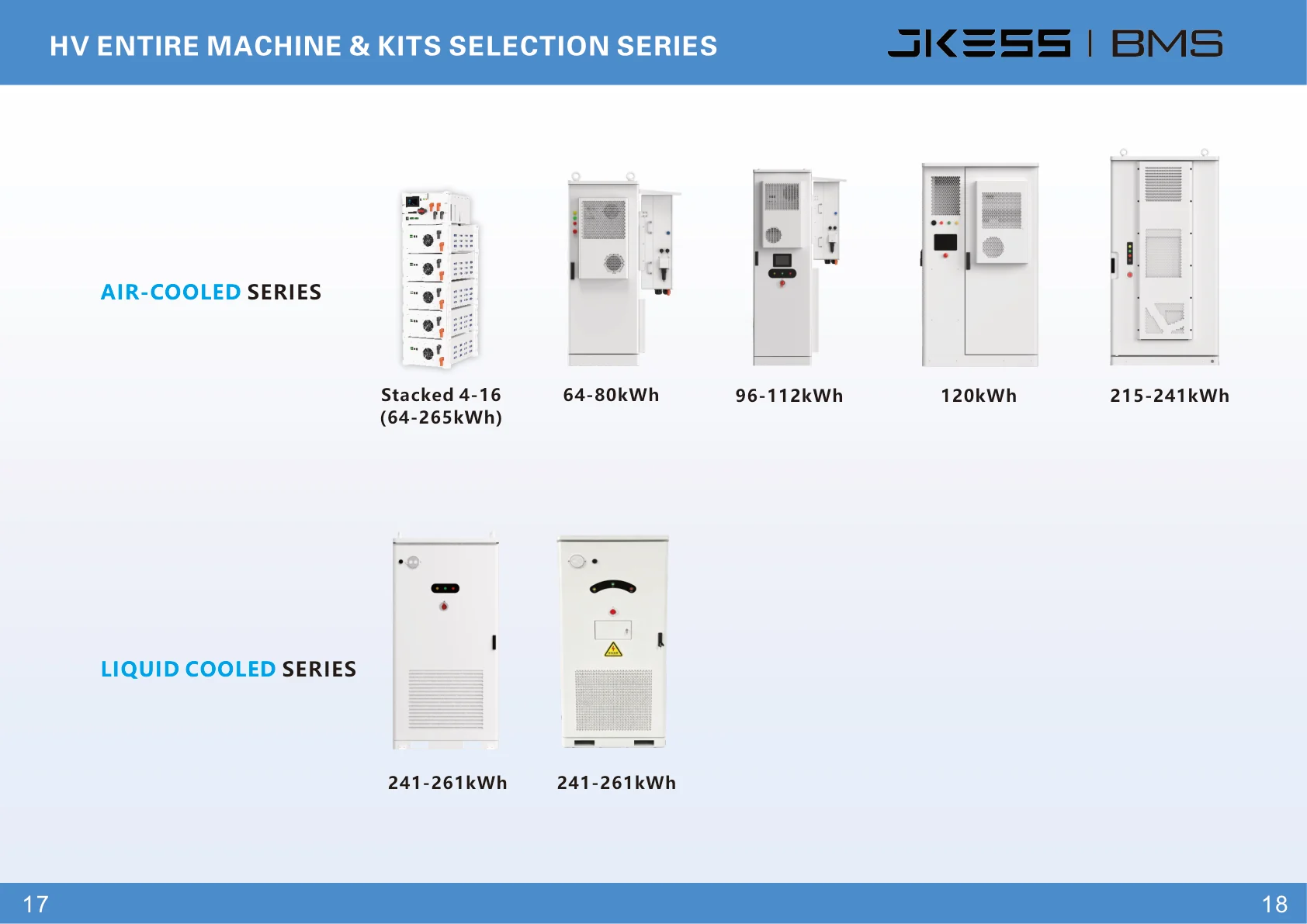

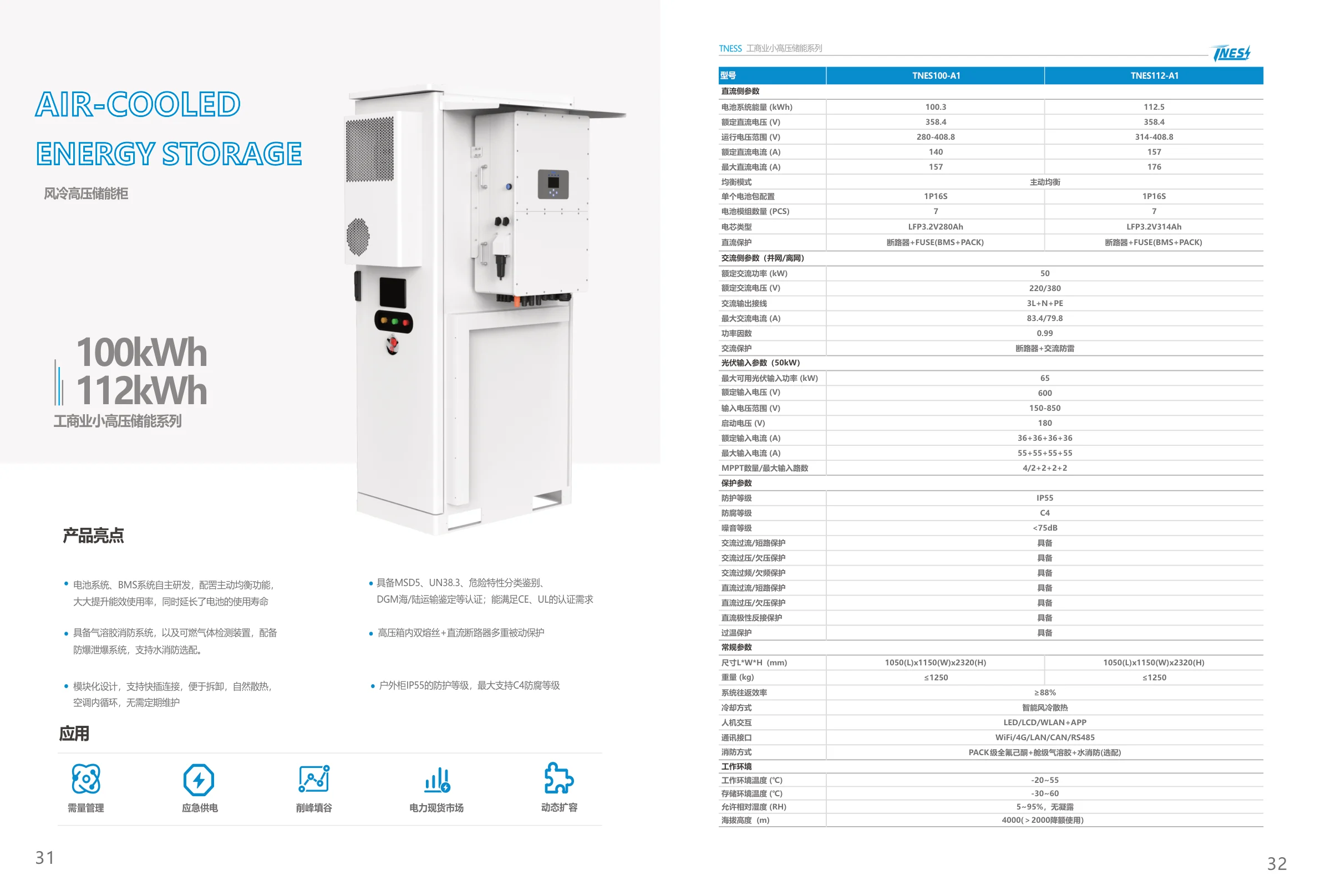

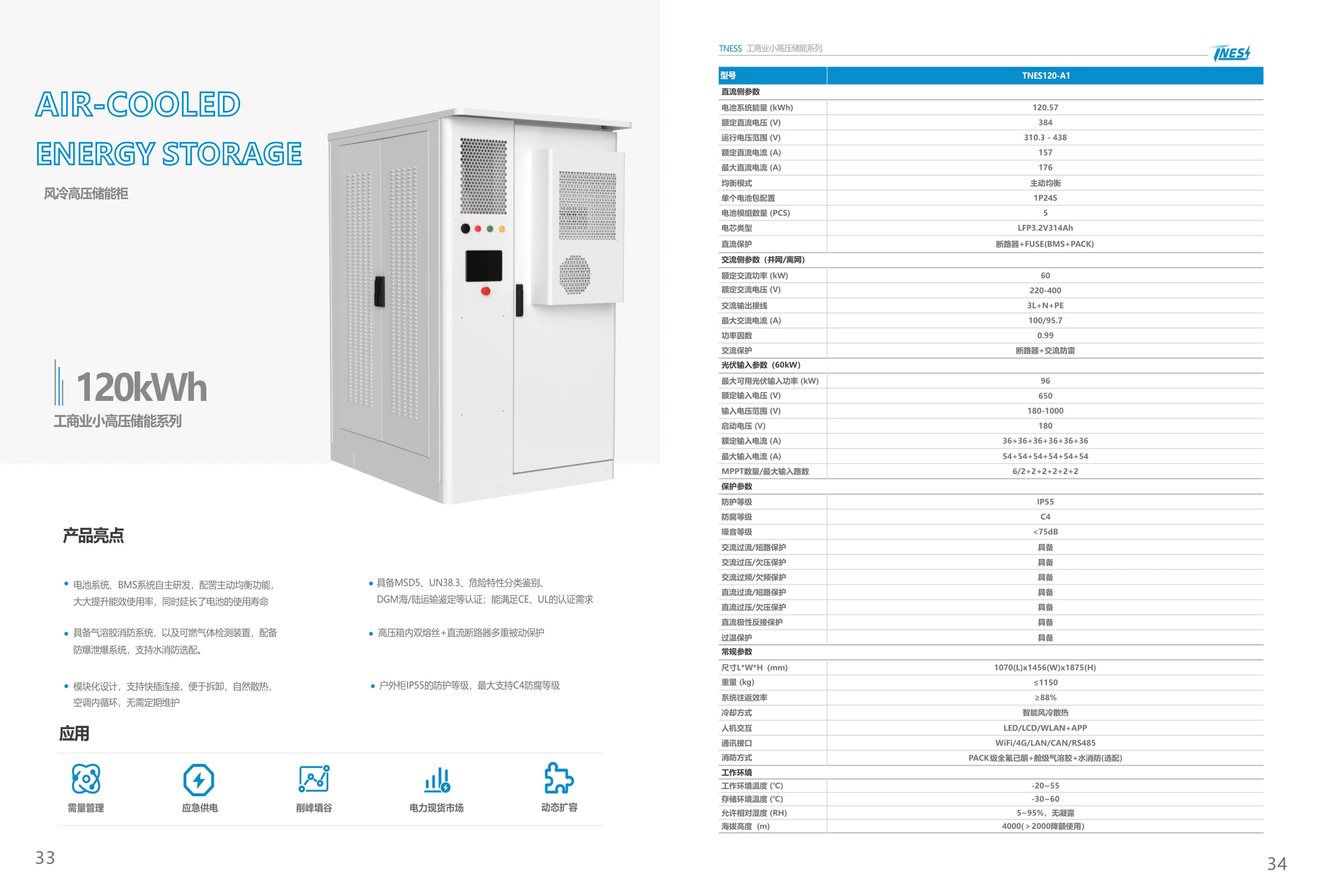

Complete visual product guide
Review the full product illustrations, dimensions, component information, and application notes before selecting a configuration.
