1 / 7JKBMS JK-PB Series

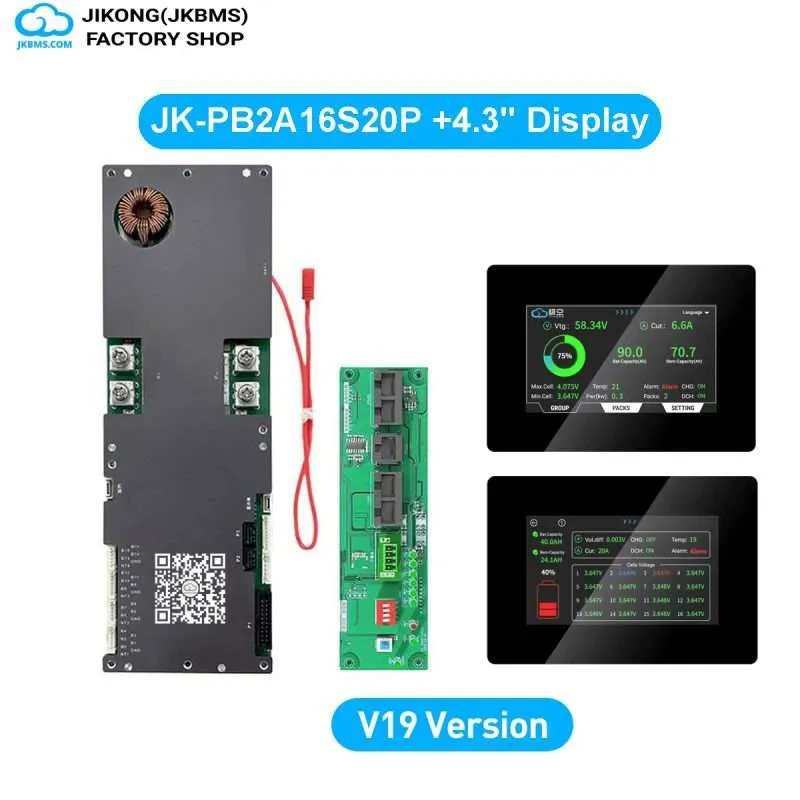

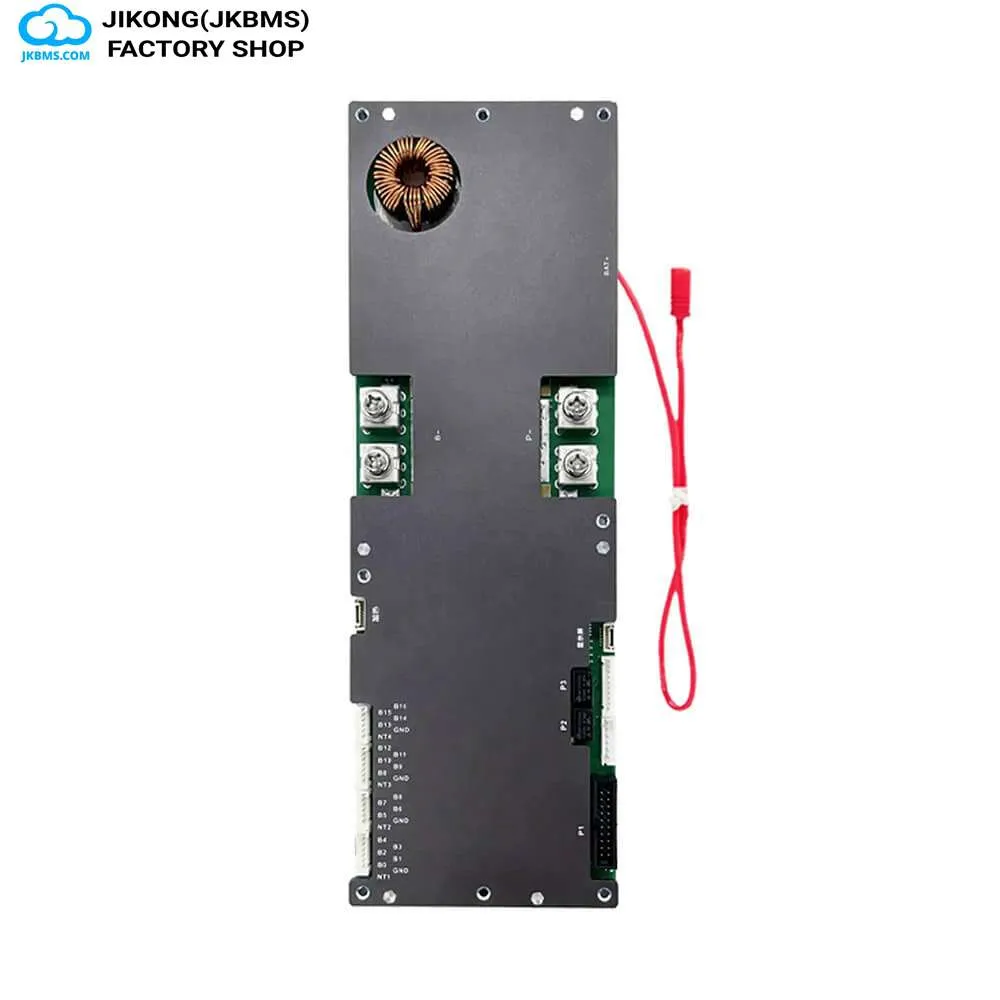

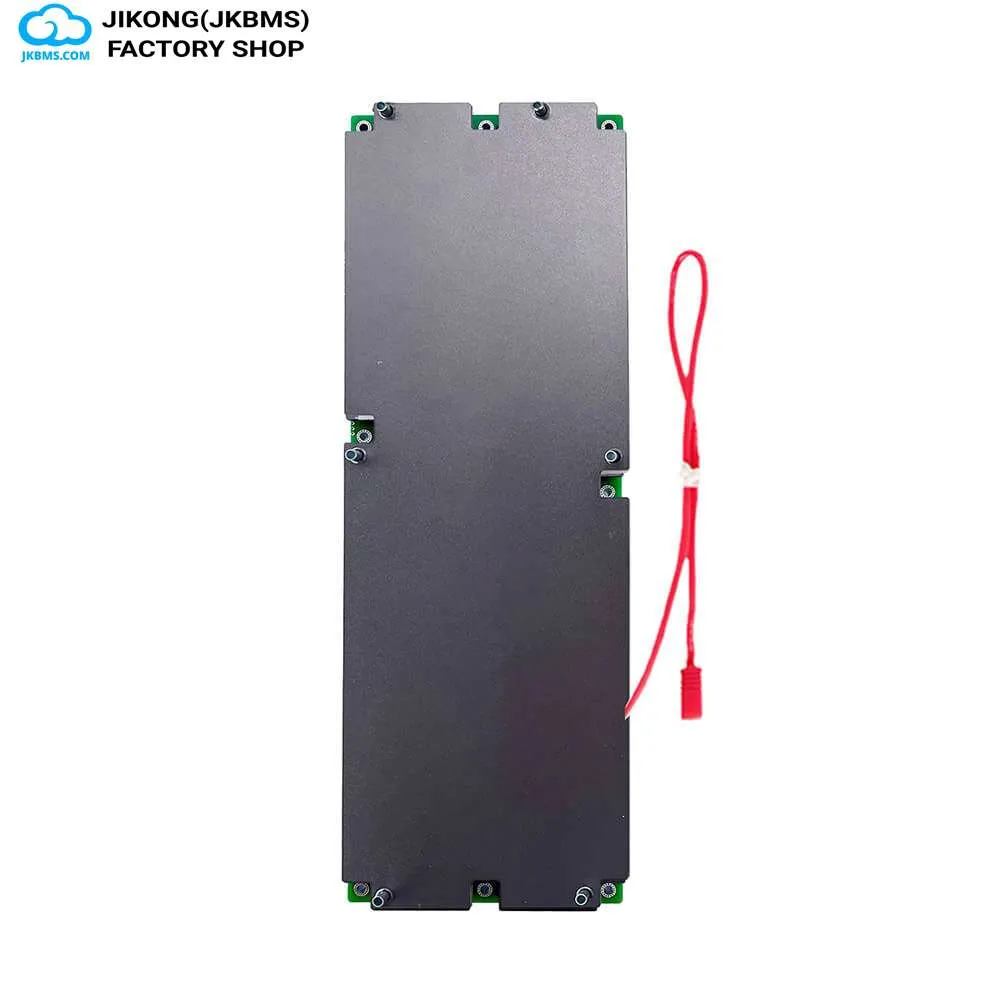

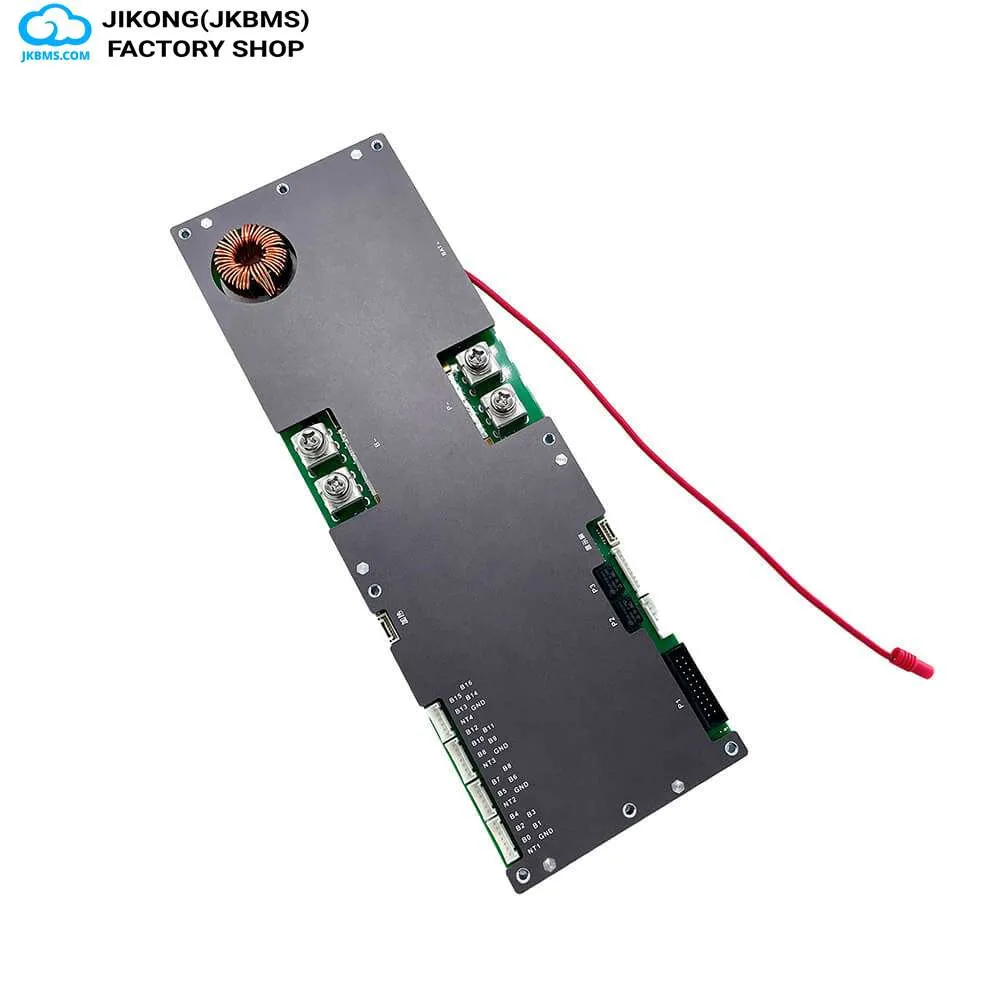

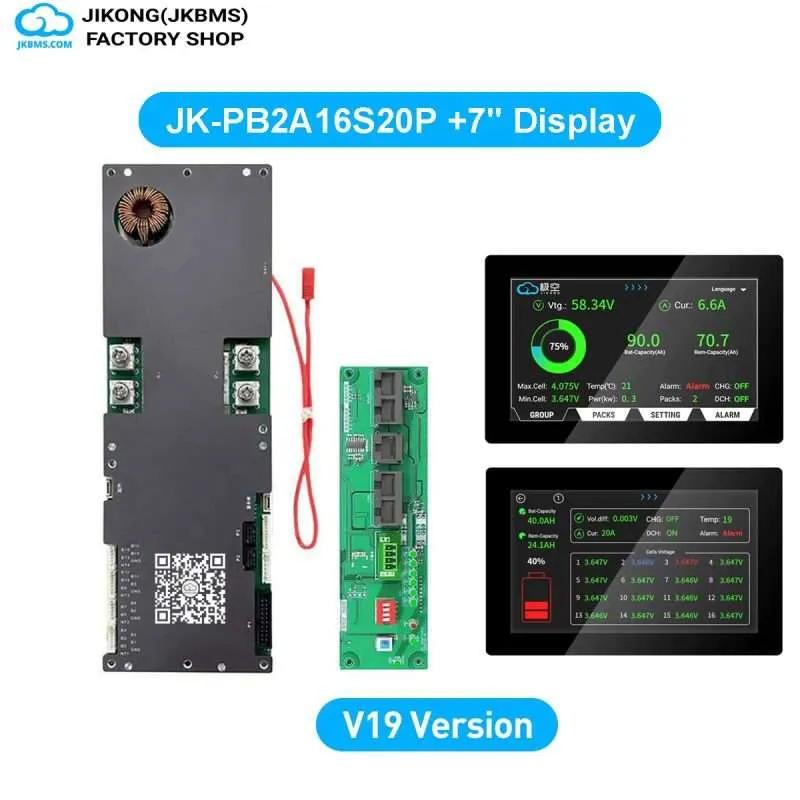

JK BMS PB2A16S20P
PB inverter-ready smart BMS with active balancing and communication options
JK BMS PB2A16S20P is a JK PB-series smart BMS listed from $158.98 to $218.93. It targets inverter-connected LiFePO4 or lithium storage builds and should be matched to the pack series count, current rating, display option, and inverter communication requirements.
Choose configurationPrices in USD
Selected configuration$218.93
Shipping is calculated by destination during checkout. PayPal verifies and captures the final amount securely.
PRODUCT DETAILS
Supply scope and specifications
Key features
- PB-series inverter BMS platform
- Active balancing for storage battery packs

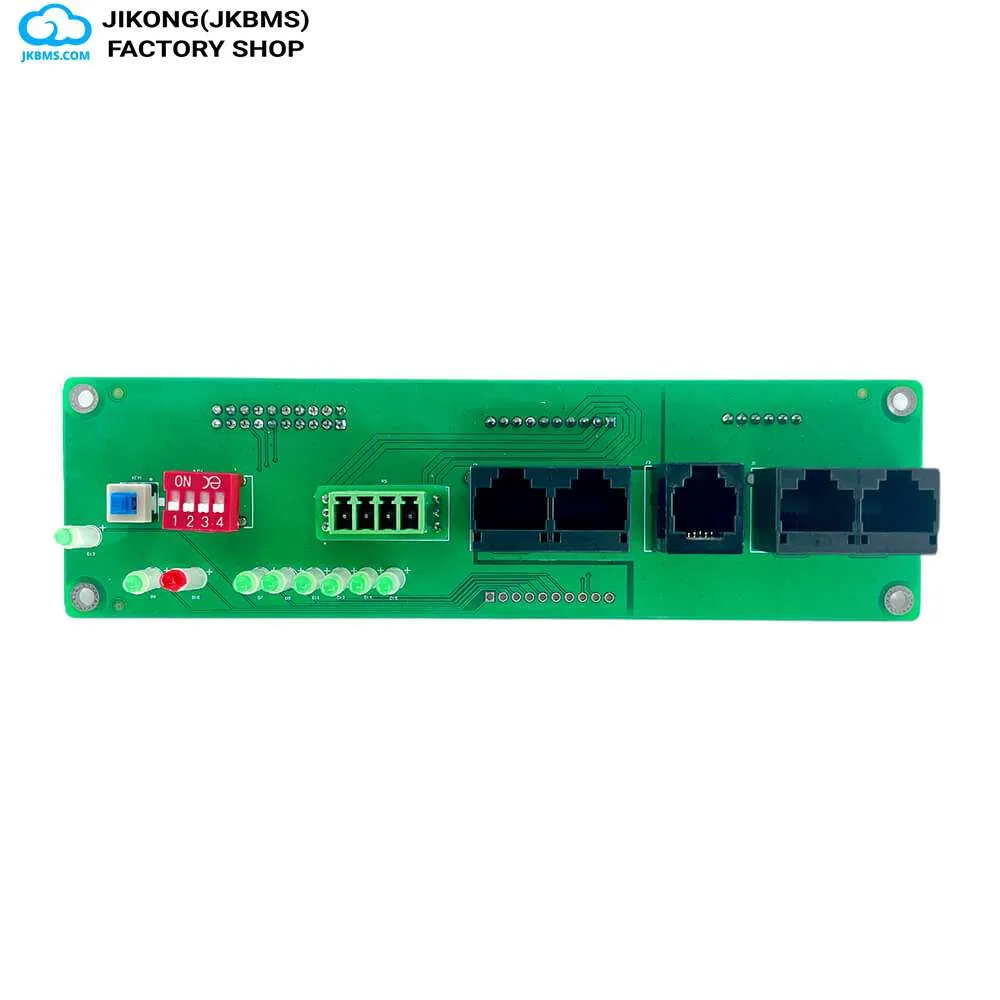

- CAN/RS485 communication where supported by the selected model
- Display options available on applicable variants
- Series rating: 8-16S
- Continuous discharge: 200A
- Active balance current: 2A
- Communication: Bluetooth, CAN, Heating Function, RS485
Included
- Selected JKBMS smart BMS model or display bundle
- Model-specific wiring harness and standard accessories supplied with the product
- Documentation or setup references supplied with the selected package
Not included
- Battery cells, battery enclosure, inverter, charger, and external power cabling
- External contactors, breakers, fuses, and installation hardware unless specified
- Onsite installation, commissioning, firmware setup, or inverter configuration service
ModelJK-PB2A16S20P
SeriesJKBMS JK-PB Series
Balance Current2A
Continuous Discharge200A
CommunicationBluetooth, CAN, Heating Function, RS485
Reference sourceImported from public JKBMS shop listing on 2026-07-02
NEED COMPATIBILITY HELP?
