1 / 3JKBMS JK-BD Series

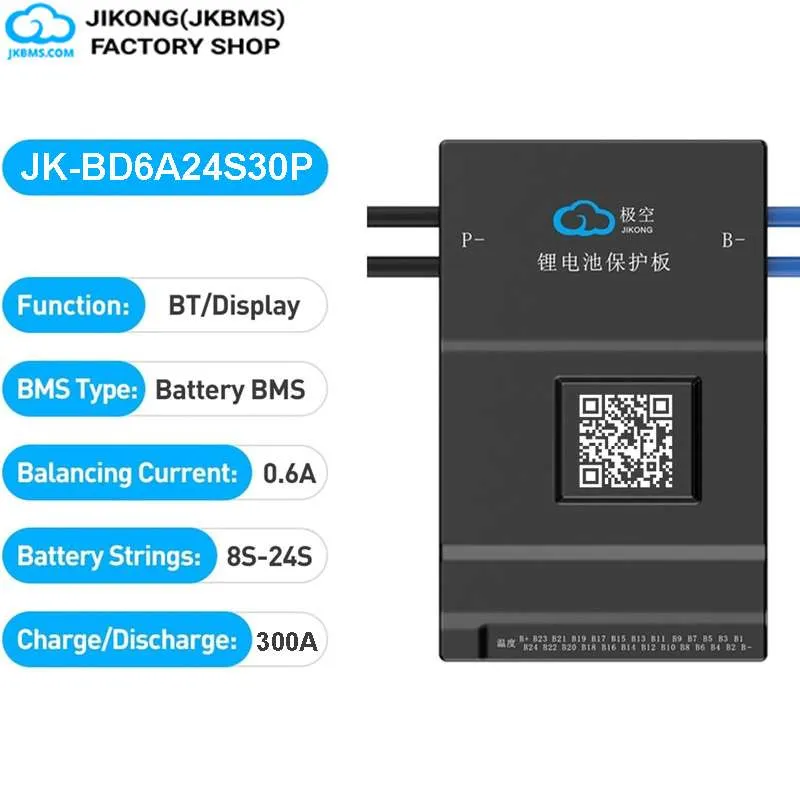

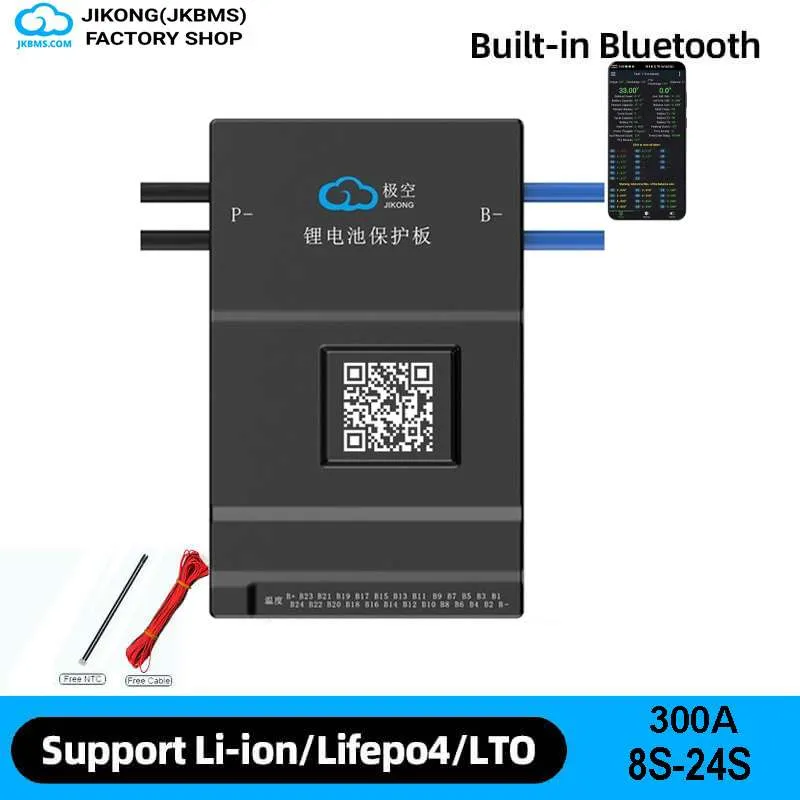

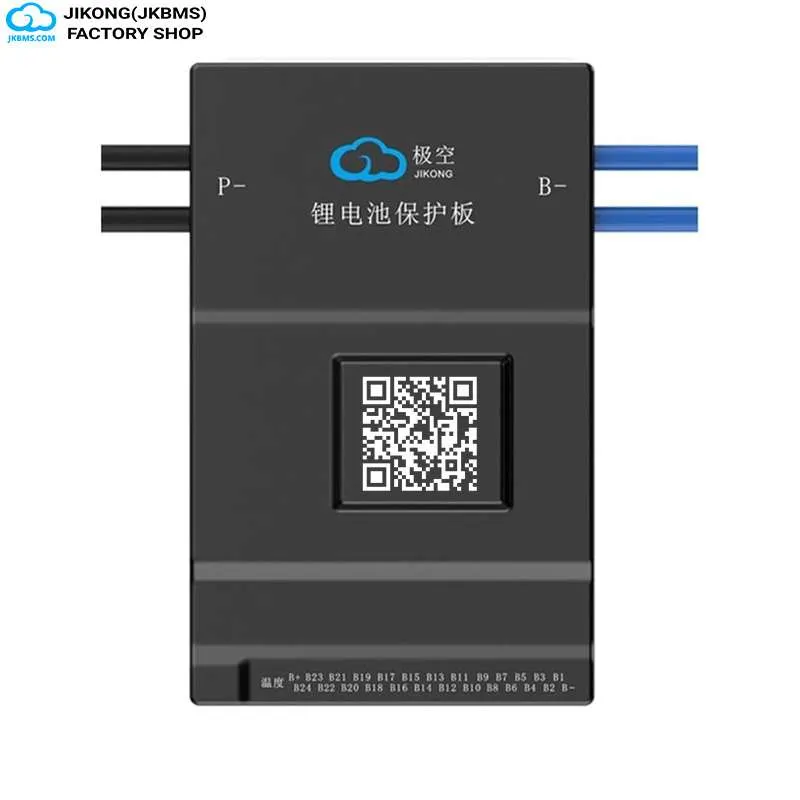

JK BMS JK-BD6A24S30P
BD smart BMS with active balancing for higher-voltage lithium packs
JK BMS JK-BD6A24S30P is a JK BD-series smart active-balance BMS listed from $174.98. It is suited to 8-24S lithium battery packs and should be selected by cell count, discharge current, balance current, and required communication interface.
Choose configurationPrices in USD
Selected configuration$174.98
Shipping is calculated by destination during checkout. PayPal verifies and captures the final amount securely.
PRODUCT DETAILS
Supply scope and specifications
Key features
- BD-series smart BMS platform
- Active cell balancing for lithium battery packs
- Model-specific discharge and cell-count rating
- Bluetooth app support where provided by the selected model
- Series rating: 8-24S
- Continuous discharge: 300A
- Active balance current: 0.6A
- Communication: Bluetooth, Display
Included
- Selected JKBMS smart BMS model or display bundle
- Model-specific wiring harness and standard accessories supplied with the product
- Documentation or setup references supplied with the selected package
Not included
- Battery cells, battery enclosure, inverter, charger, and external power cabling
- External contactors, breakers, fuses, and installation hardware unless specified
- Onsite installation, commissioning, firmware setup, or inverter configuration service
ModelJK-BD6A24S30P
SeriesJKBMS JK-BD Series
Balance Current0.6A
Continuous Discharge300A
CommunicationBluetooth, Display
Reference sourceImported from public JKBMS shop listing on 2026-07-02
