1 / 66U Rack Battery Enclosure Kit
6U Battery Kit

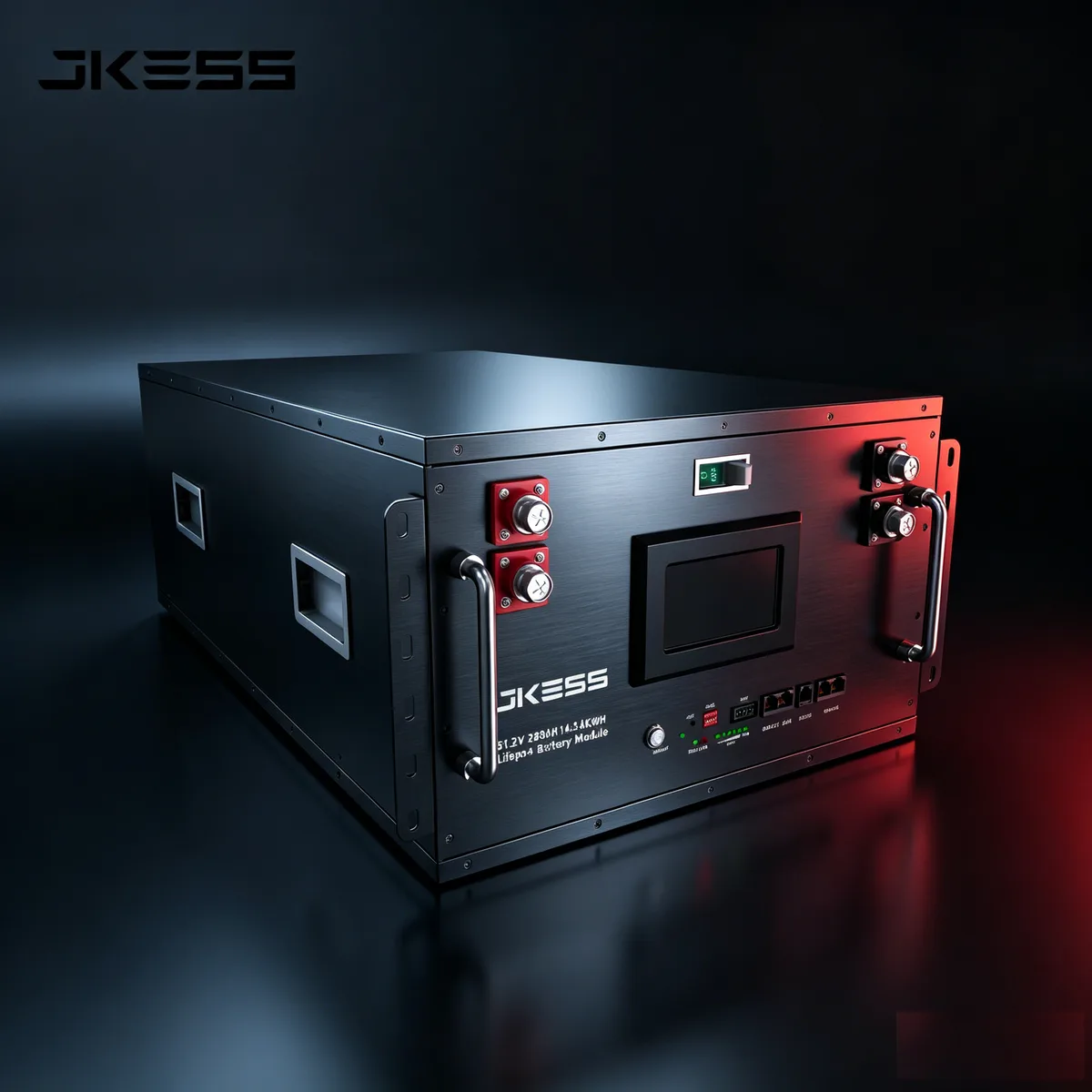

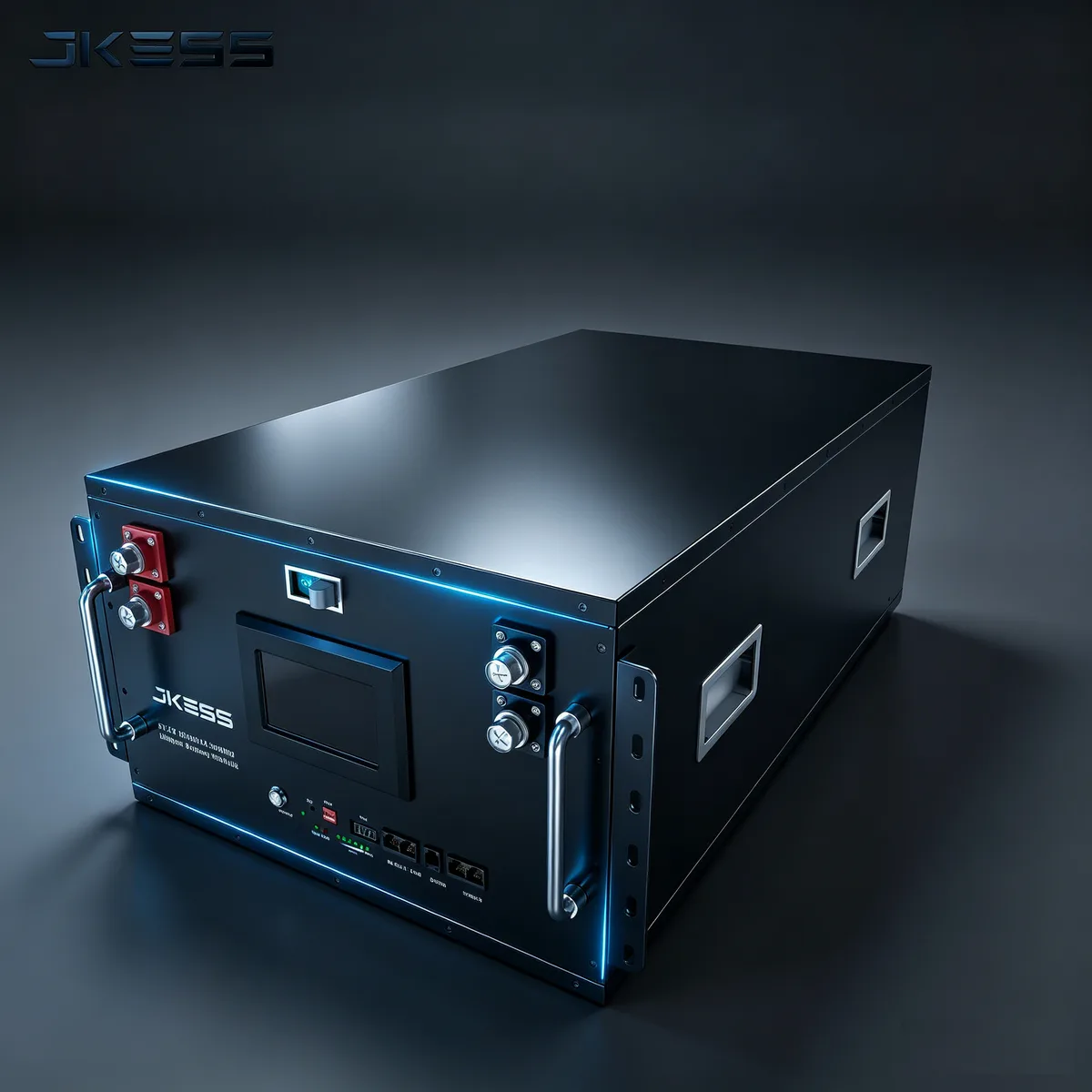

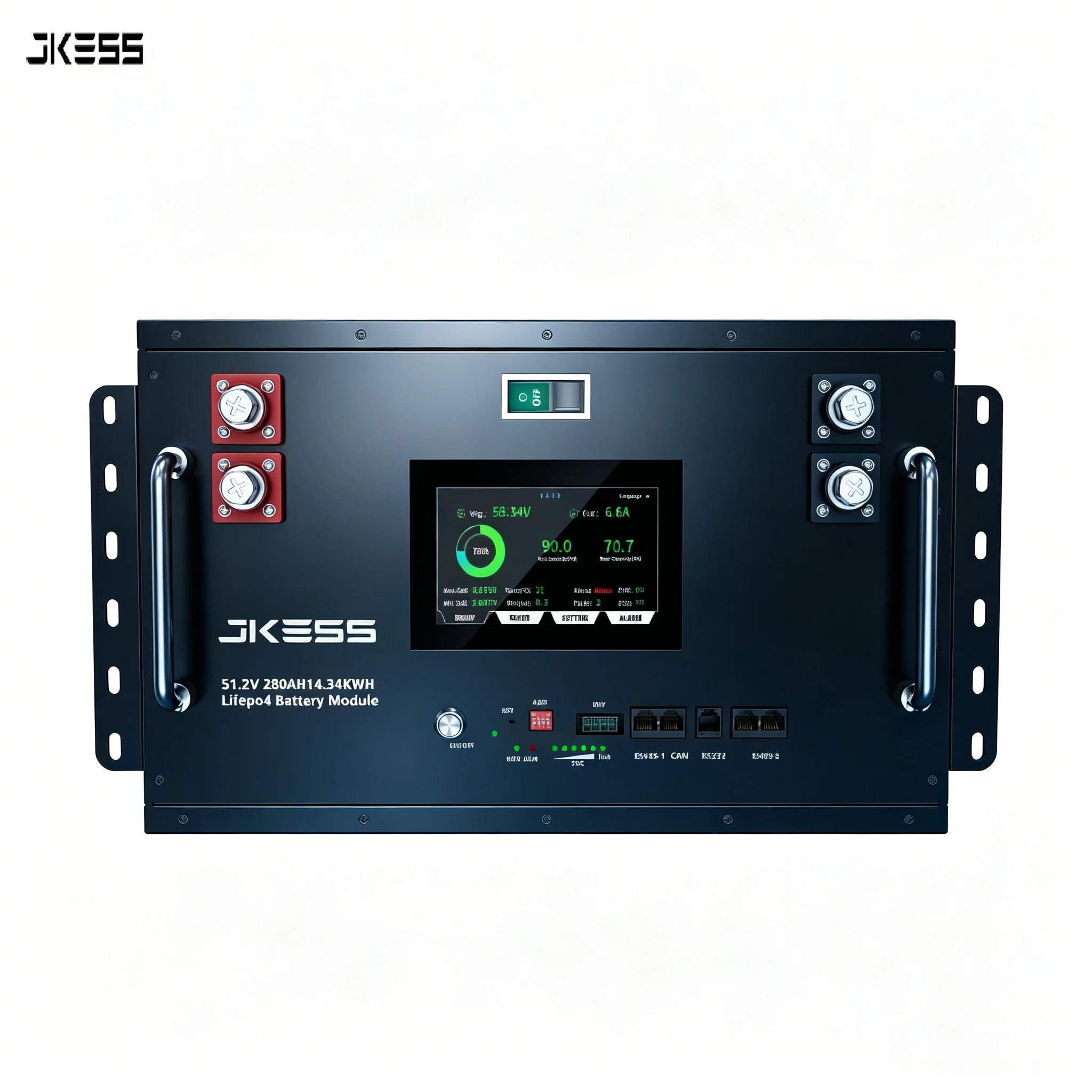

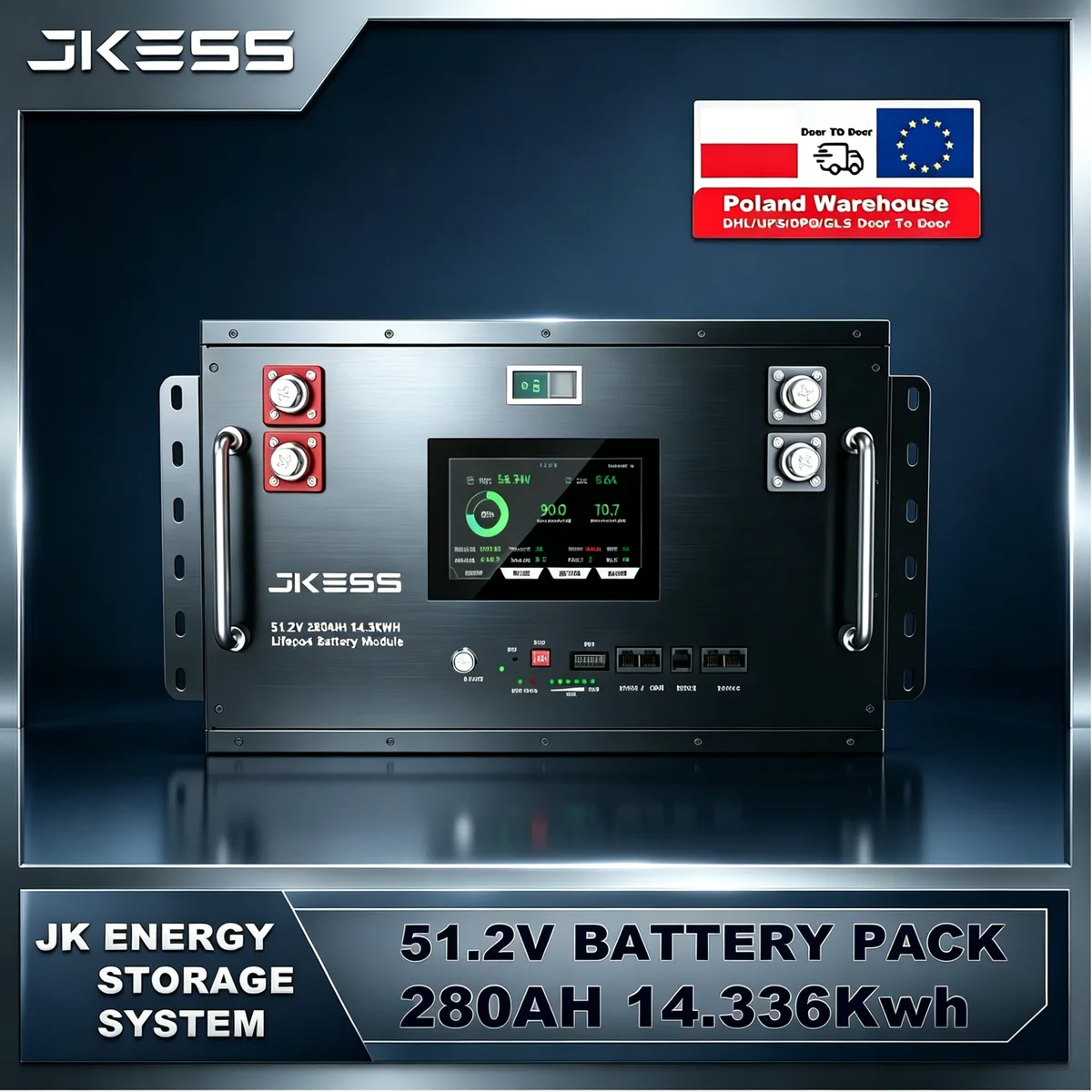

6U rack-mount LiFePO4 enclosure kit with optional BMS and LCD
A 19-inch rack-mount enclosure and assembly hardware kit for building a 51.2V LiFePO4 battery module. The supported 15kWh capacity applies after compatible cells are installed. Battery cells are not included.
Choose configurationPrices in USD
Selected configuration$380.00
Shipping is calculated by destination during checkout. PayPal verifies and captures the final amount securely.
PRODUCT DETAILS
Supply scope and specifications
Key features

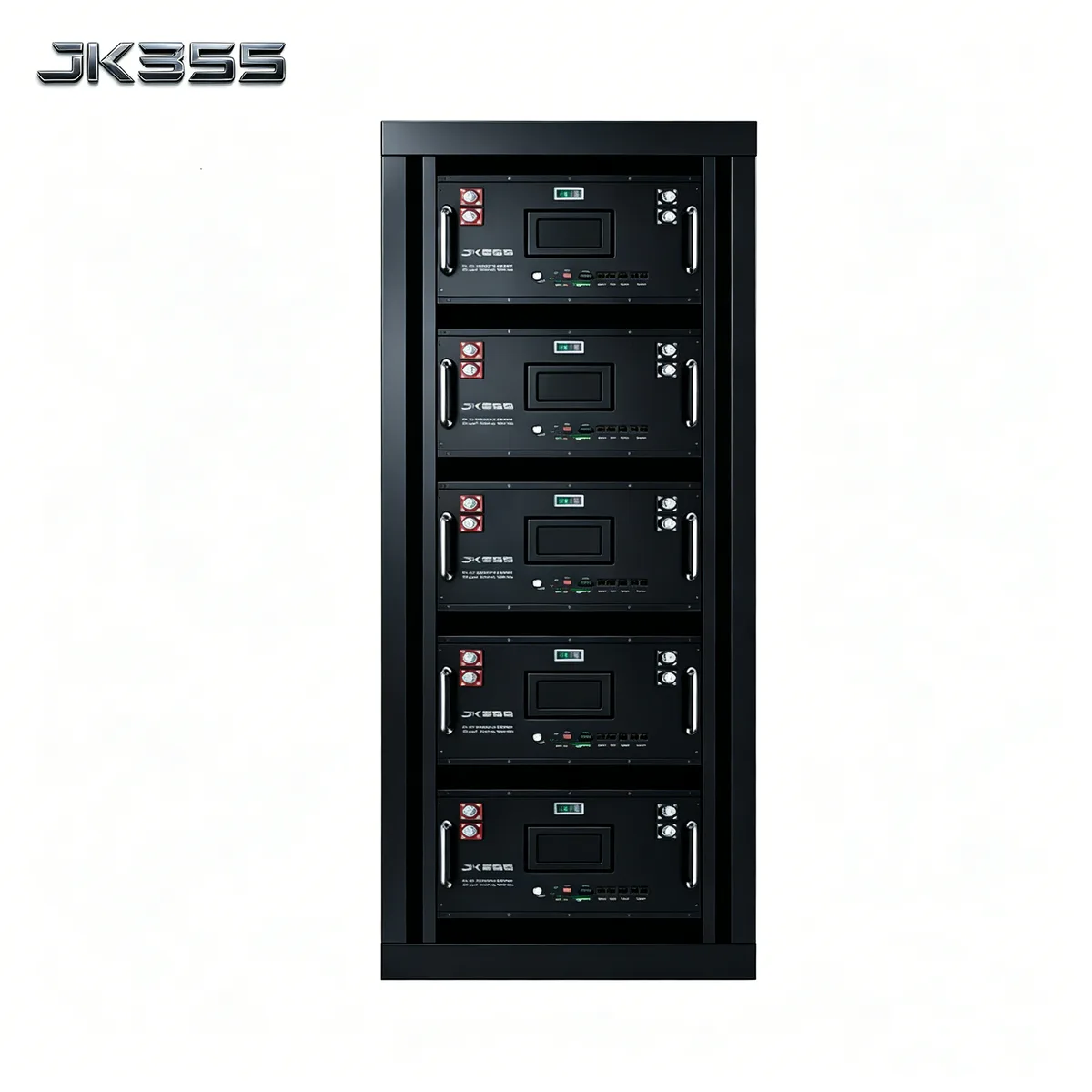

- 6U rack-mount form factor for standard 19-inch cabinets
- Supports a 51.2V 15kWh assembled configuration after compatible cells are installed
- Optional intelligent BMS with active balancing

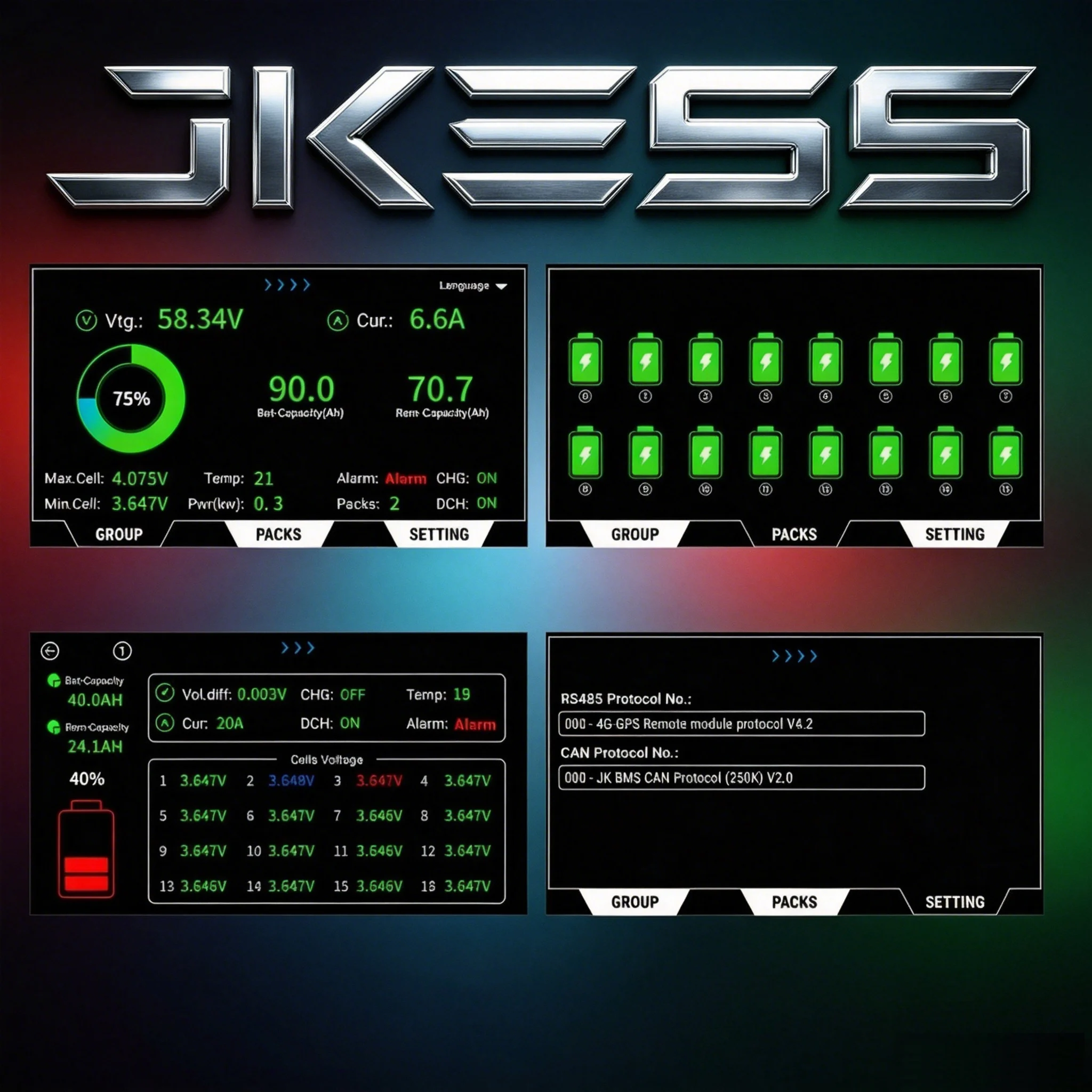

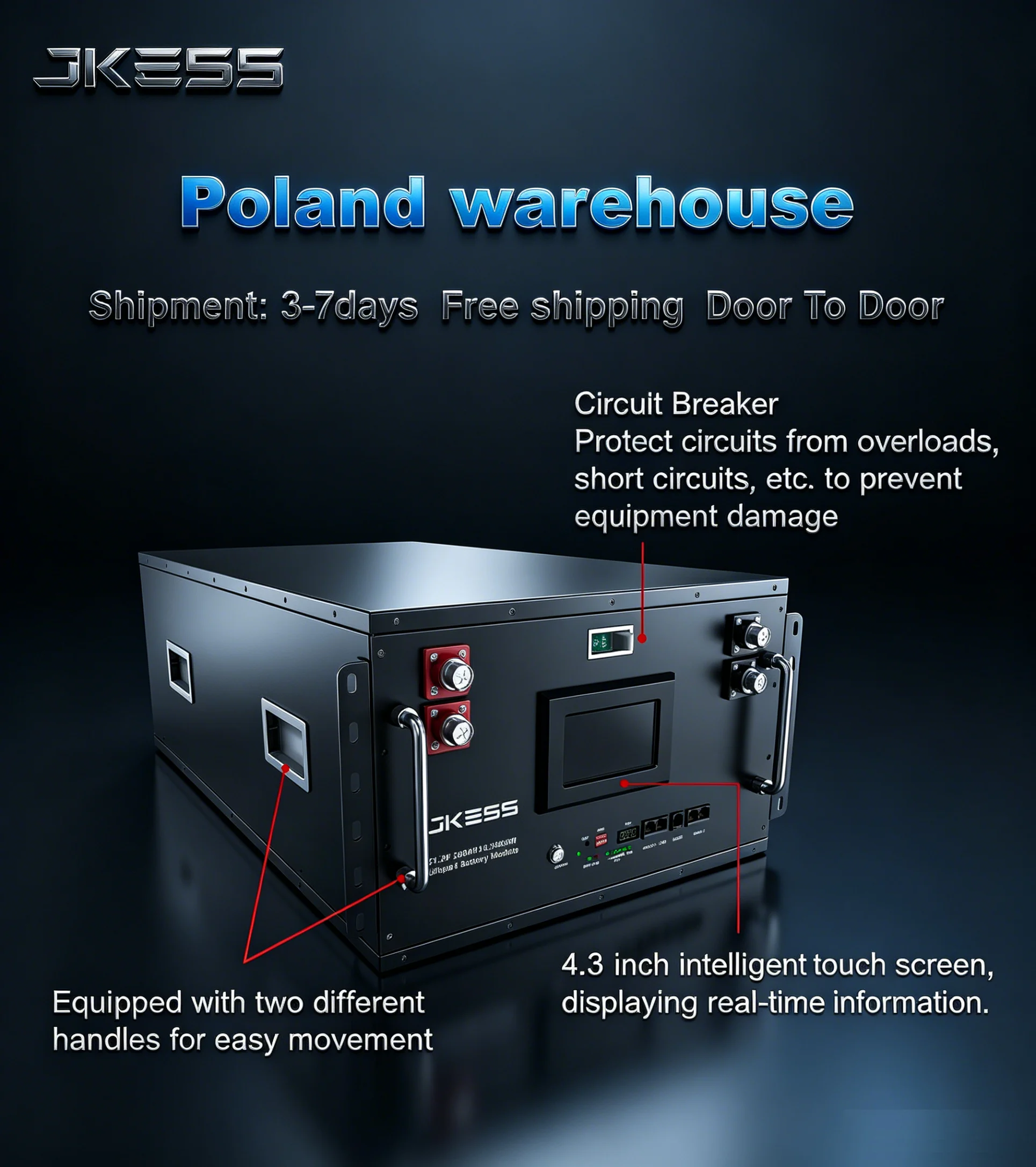

- Optional 4.3-inch LCD for voltage, current, temperature, and SOC monitoring

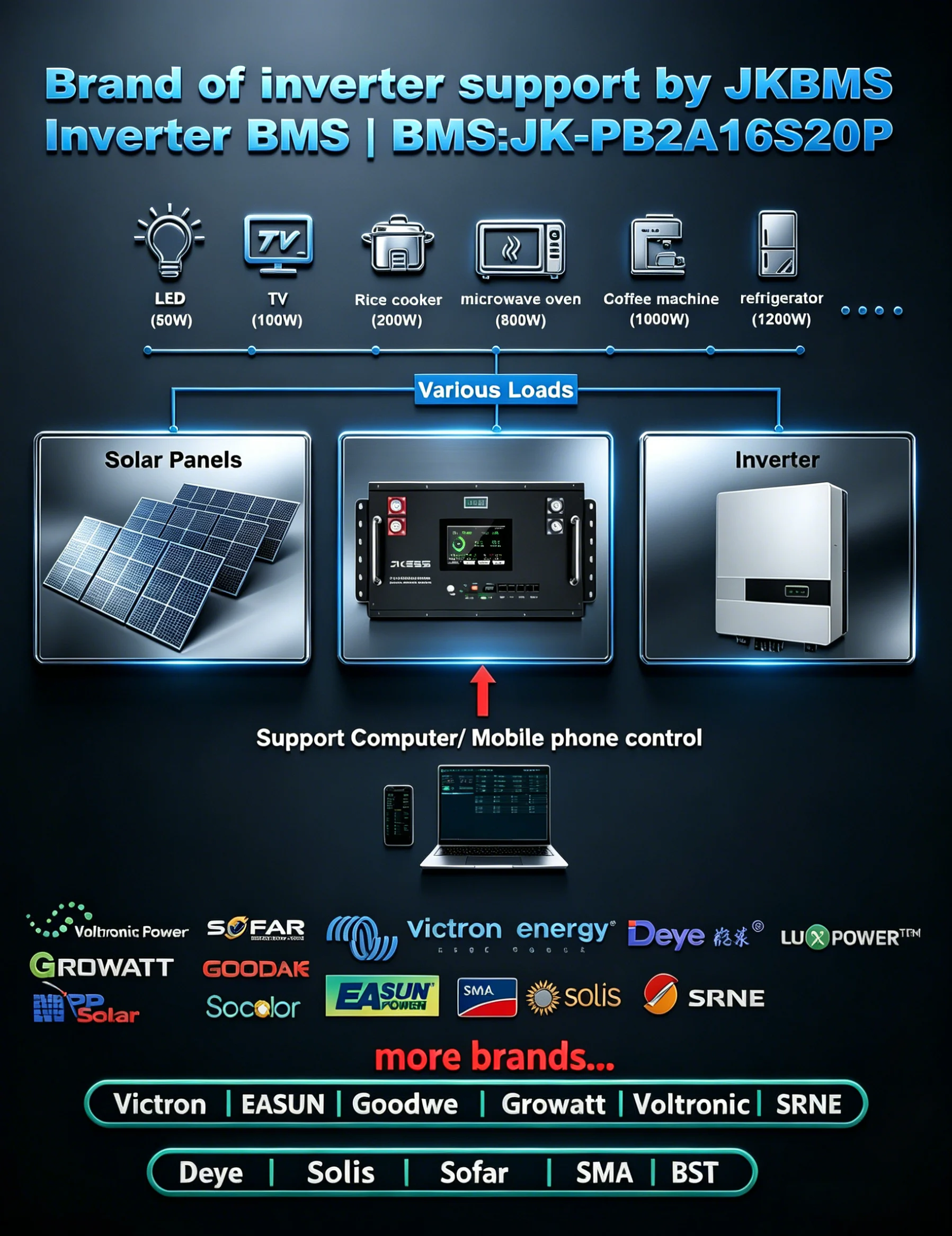

- CAN / RS485 communication with compatible electronics

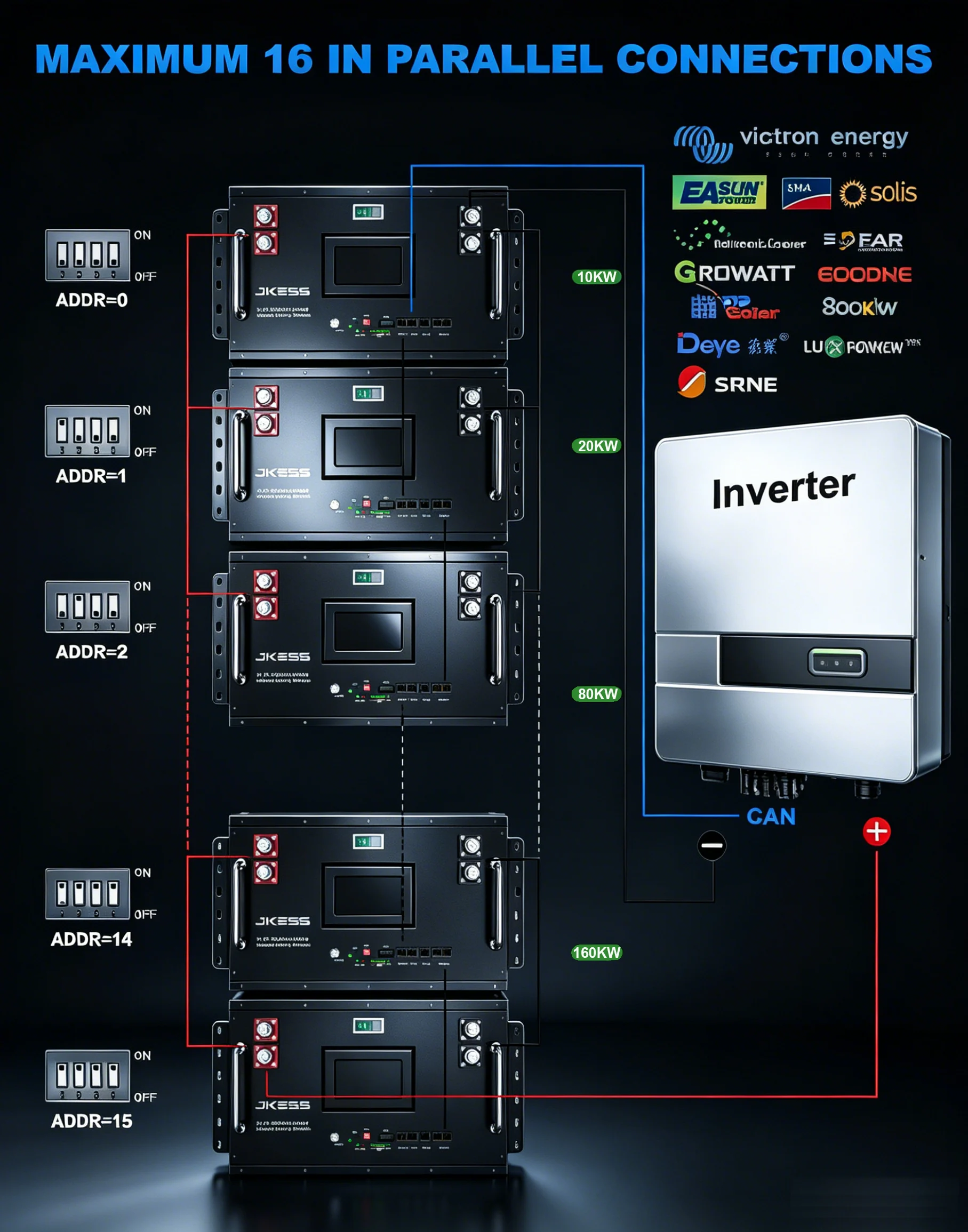

- Modular design for planned parallel expansion
- 1-year warranty for supplied hardware
Included

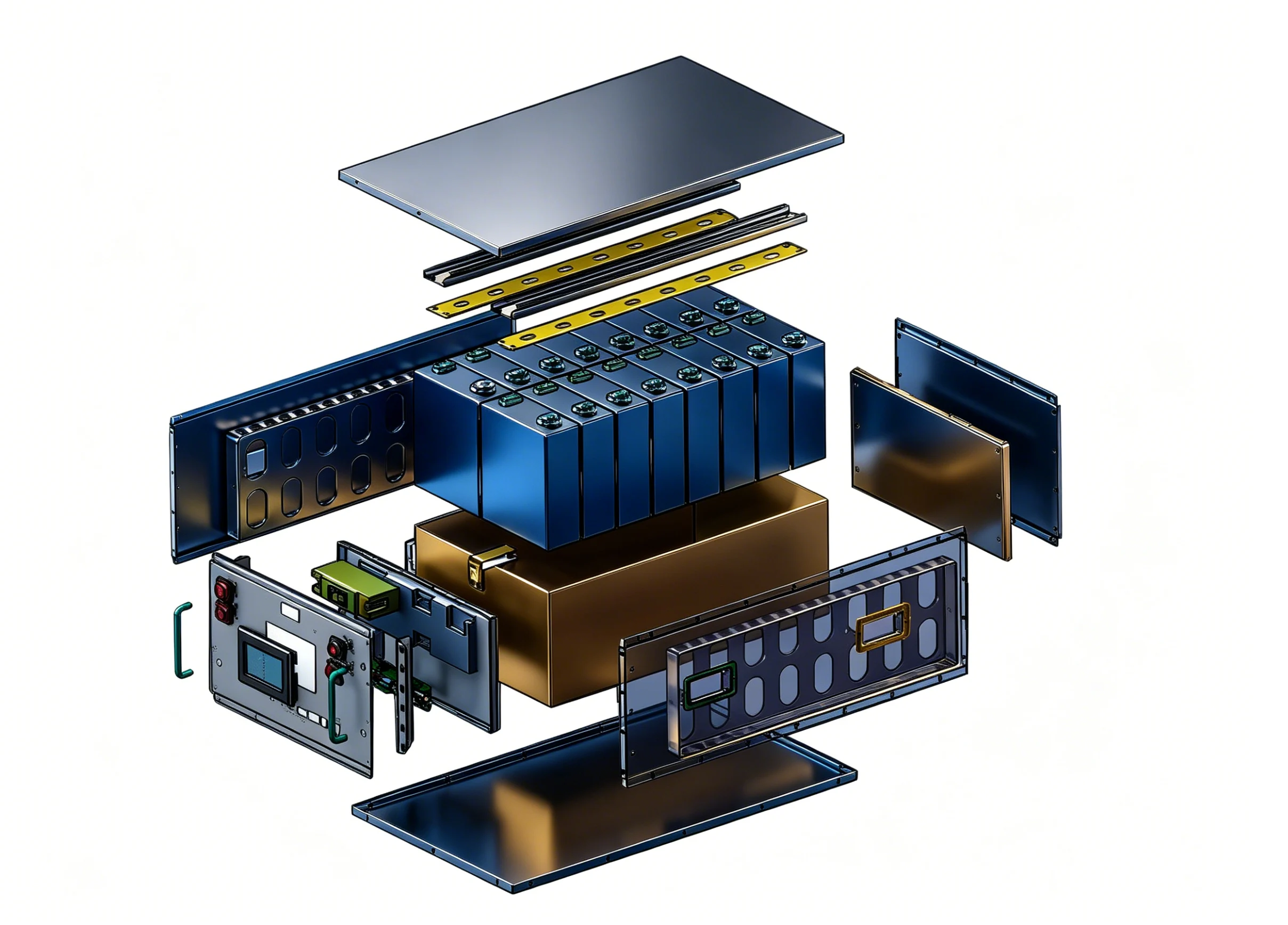

- 6U sheet-metal enclosure for standard 19-inch rack installation
- Internal mechanical and connection hardware supplied with the selected package

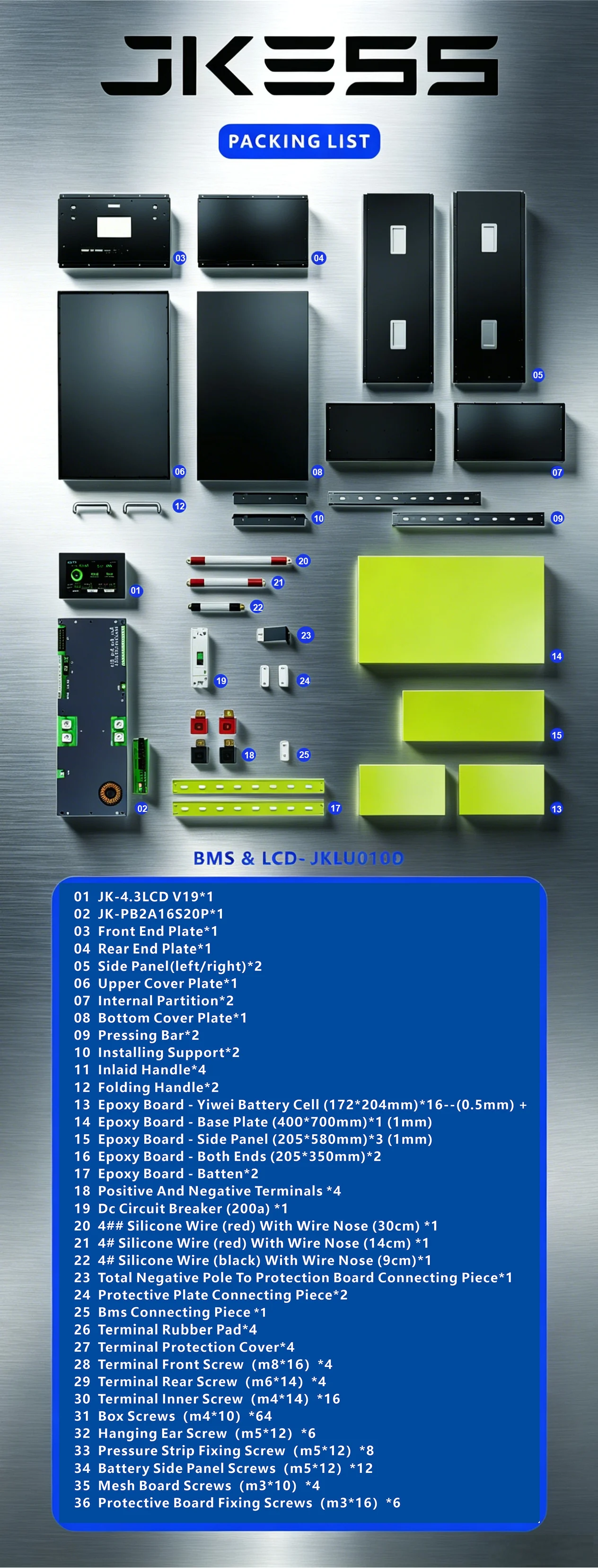

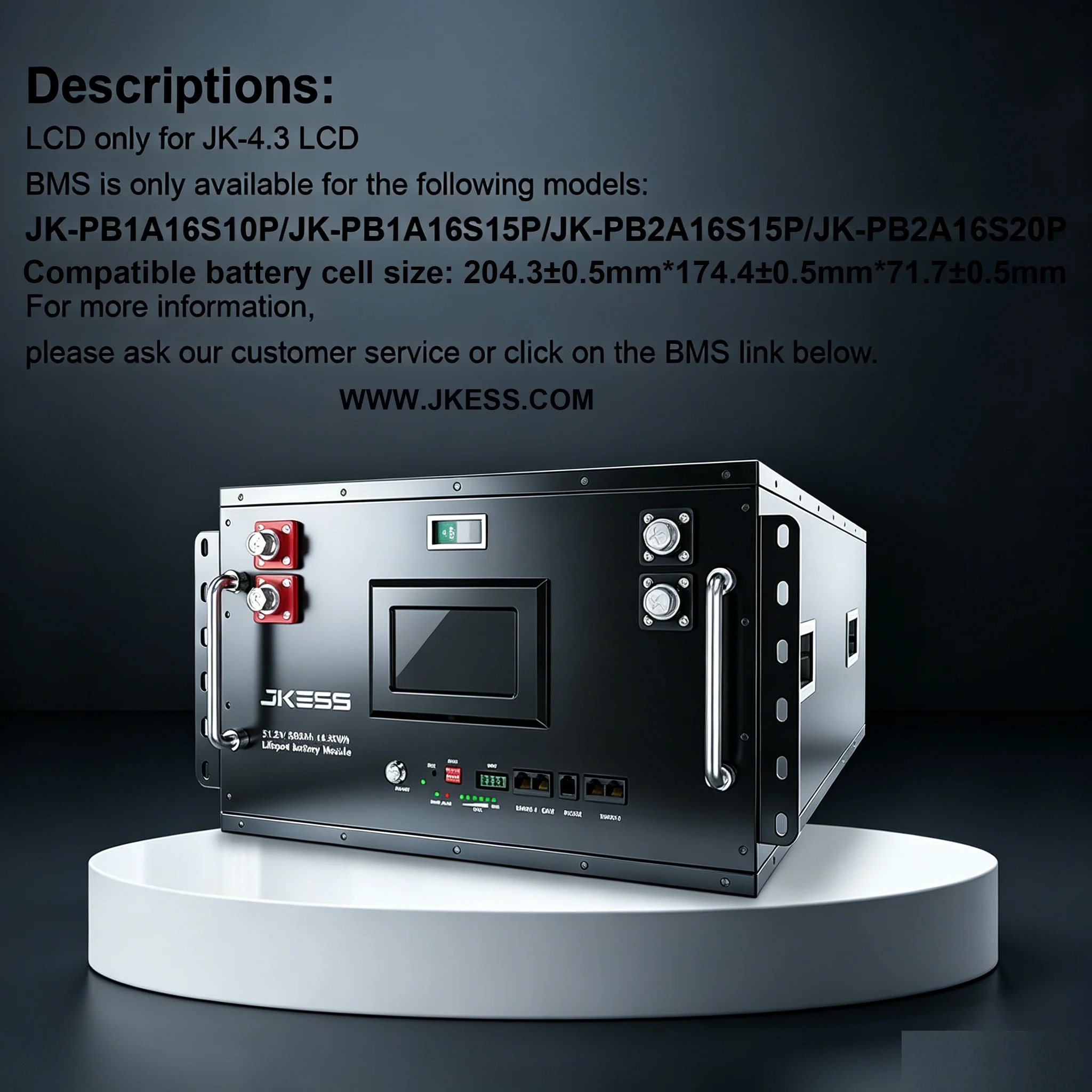

- 4.3-inch LCD and BMS only when the Enclosure + LCD + BMS option is selected

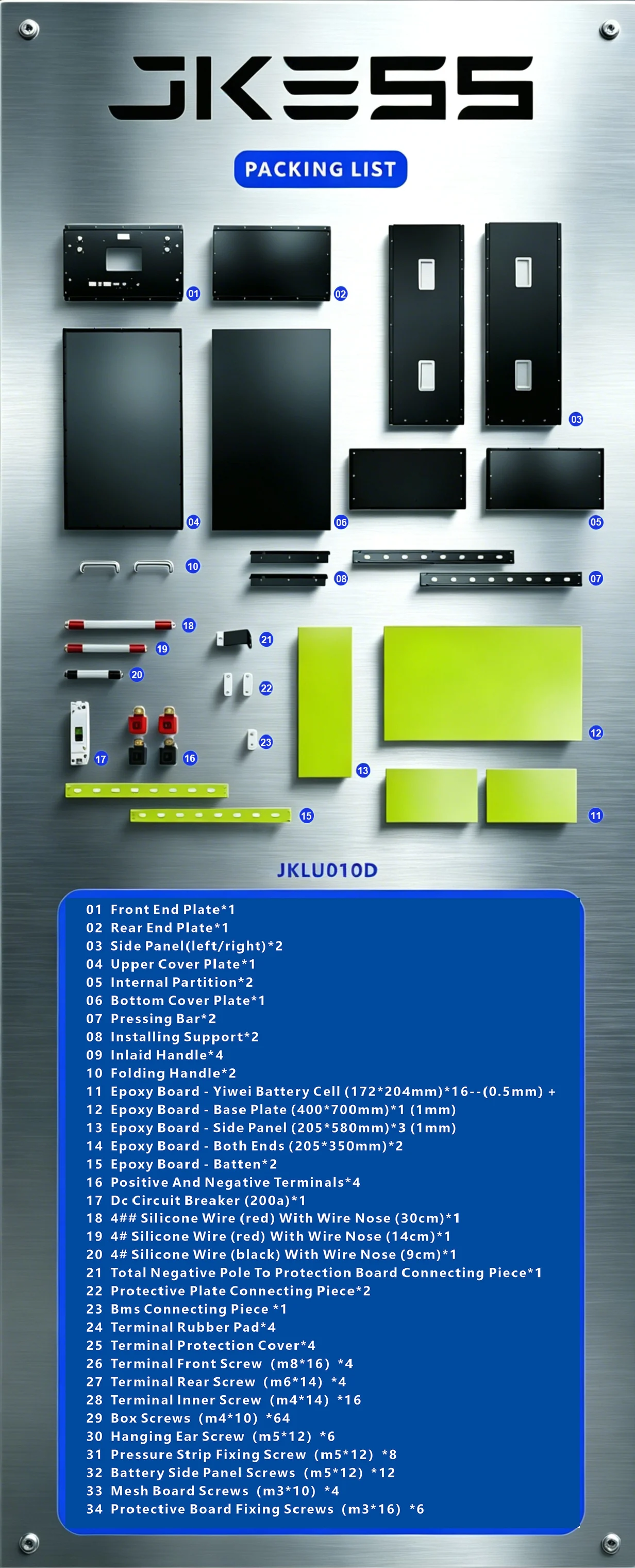

- Standard packing list and applicable product documentation
Not included
- LiFePO4 battery cells
- External rack cabinet, inverter, charger, breaker, and external cabling
- Onsite assembly, installation, and commissioning
- Any component not listed in the selected variant or final packing list

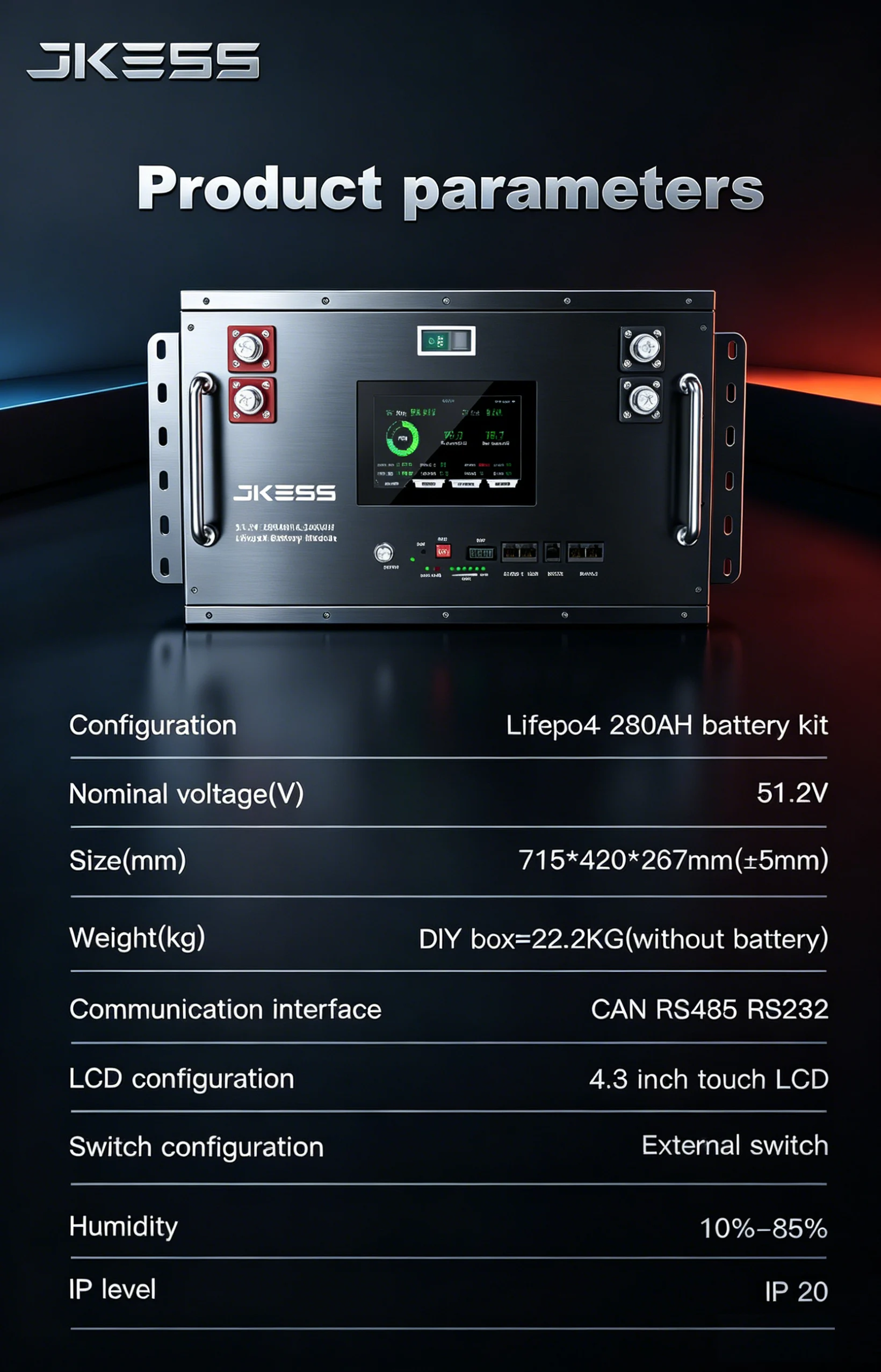

Product Type6U rack battery enclosure and assembly hardware kit
Supported Assembled Capacity15kWh after compatible cells are installed
Battery Cells IncludedNo
Nominal Voltage51.2V assembled configuration
Package OptionsEnclosure Only / Enclosure + LCD + BMS
Form Factor6U rack-mount, 19-inch
Cell ChemistryLiFePO4 compatible
CommunicationCAN 2.0 / RS485 with compatible BMS option
DisplayOptional 4.3-inch LCD touch display
Operating Temperature-20°C ~ 60°C, component dependent
Protection RatingIP20 indoor enclosure design

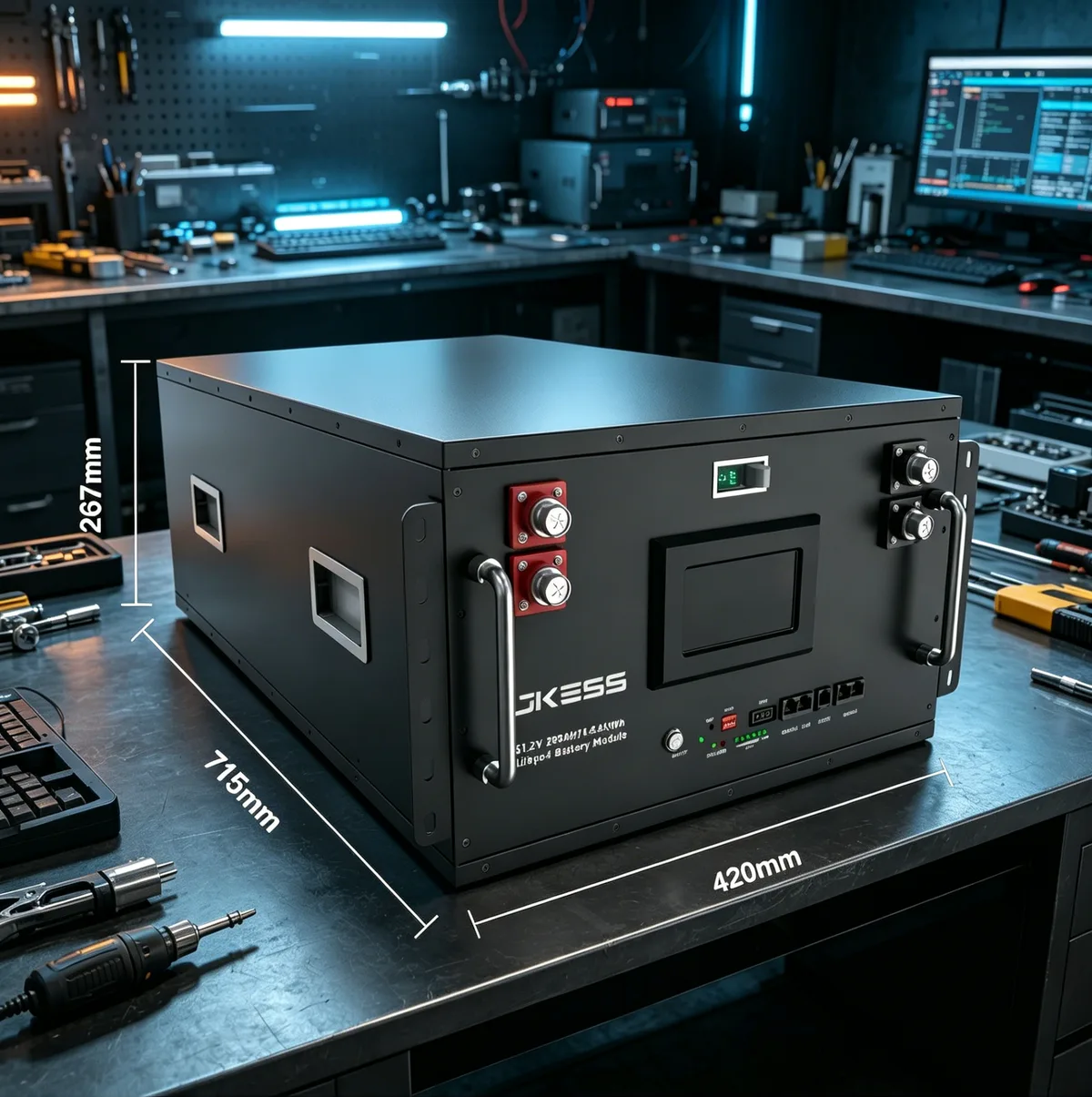

Dimensions715 × 472 × 270 mm
Weight~25 kg empty, configuration dependent
Warranty1 year for supplied hardware
DETAILED PRODUCT INFORMATION
Complete visual product guide
Review the full product illustrations, dimensions, component information, and application notes before selecting a configuration.
